Images are for reference only See Product Specifications
Waterproof Connector Solutions

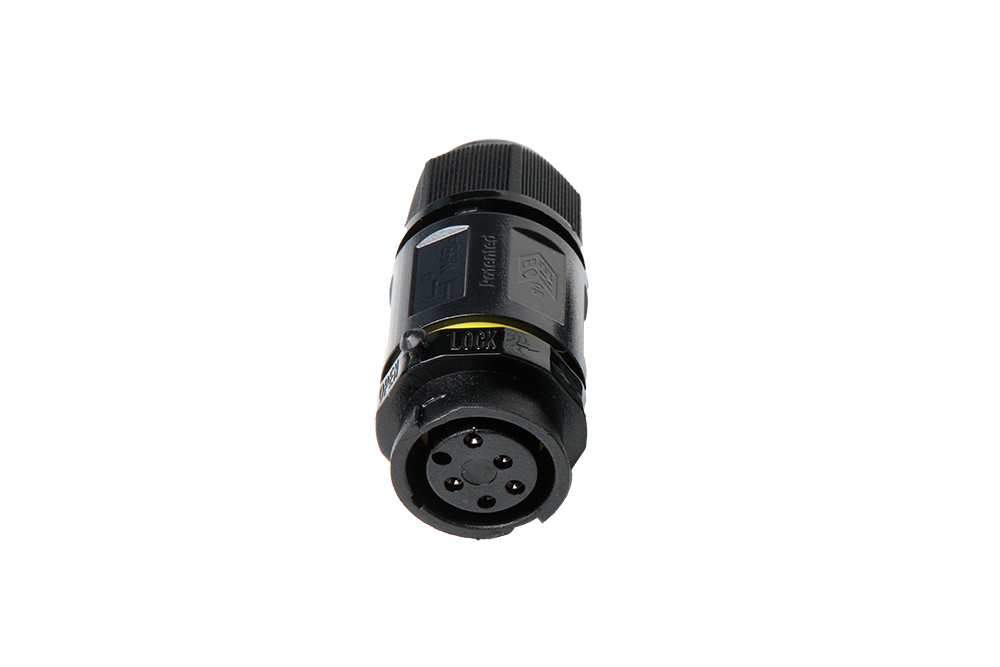

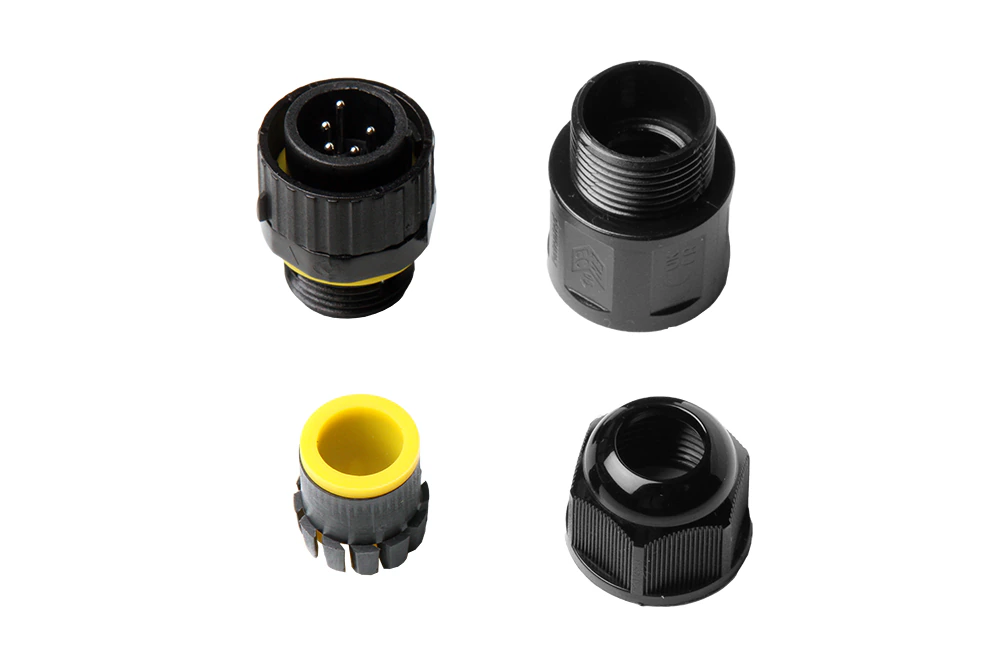

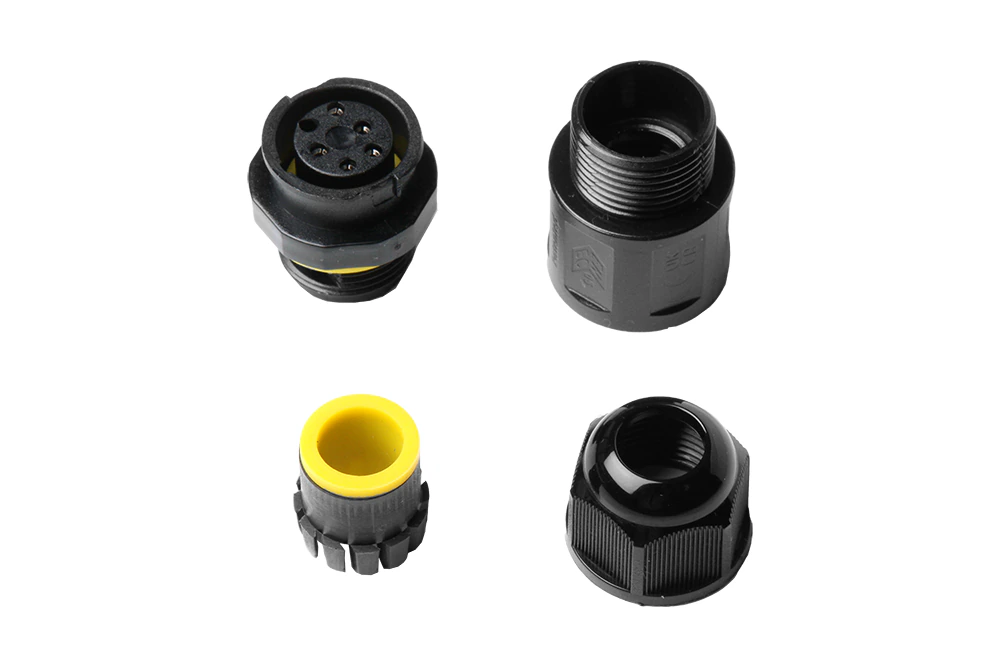

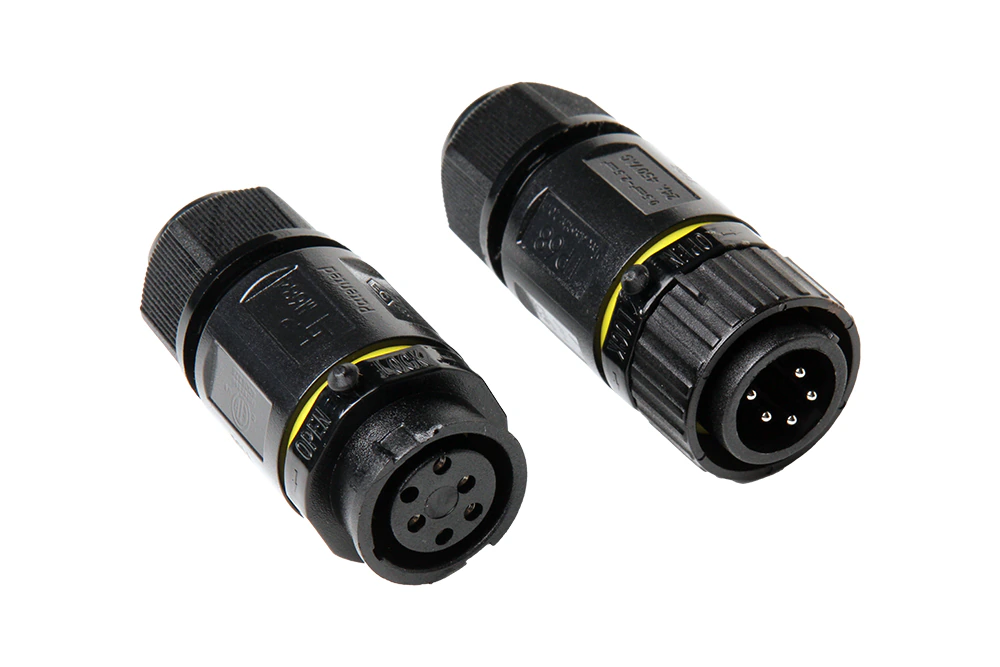

5 Pin Field Assembly Pluggable Connector
Part number
WPFM-0500M25 Manufacturer
TTAF Elektronik
Product Code:WPFM-0500M25
| Durability Voltage | 3000VAC @ 60 s. |
|---|---|
| Voltage Rating | 450VAC max |
| Current Rating | 16A max |
| IP Class | IP68 (20m/150hours) |
| Operating Temperature | -40°C ~ +85°C |
| Insulation Structure | 500 mΩ at 500VDC |
| Contact Resistance | 30 mΩ max |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Ordering information
| Product Code | Product Description | Current Value | Voltage Value | Withstand Voltage | Body Material | Operating Temperature |
|---|---|---|---|---|---|---|
| WPFM-0500M25 | 5 Pin Connector | 16A max | 450VAC max | 3000VAC @ 60 s. | - | -40°C ~ +85°C |
Request a quote or availability
Send us this part and we will come back with pricing, lead time, and availability.
