Images are for reference only See Product Specifications
Waterproof Connector Solutions

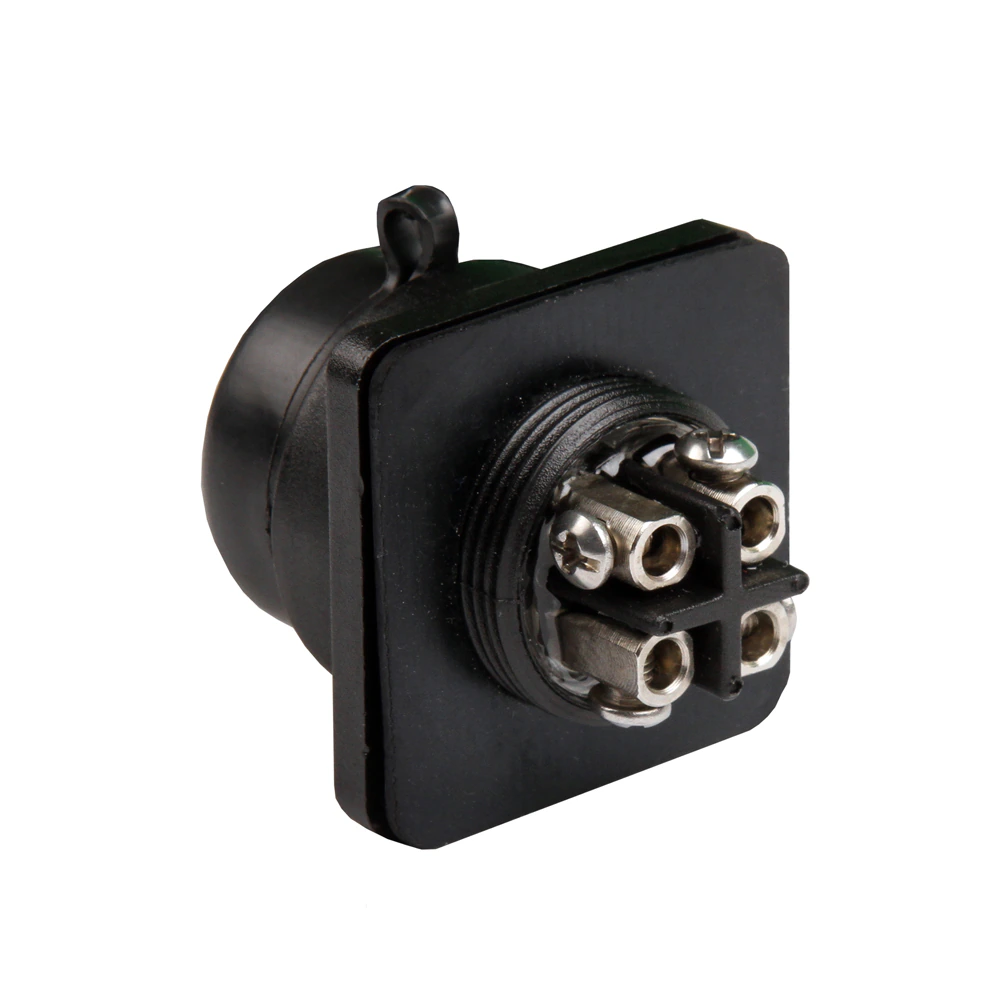

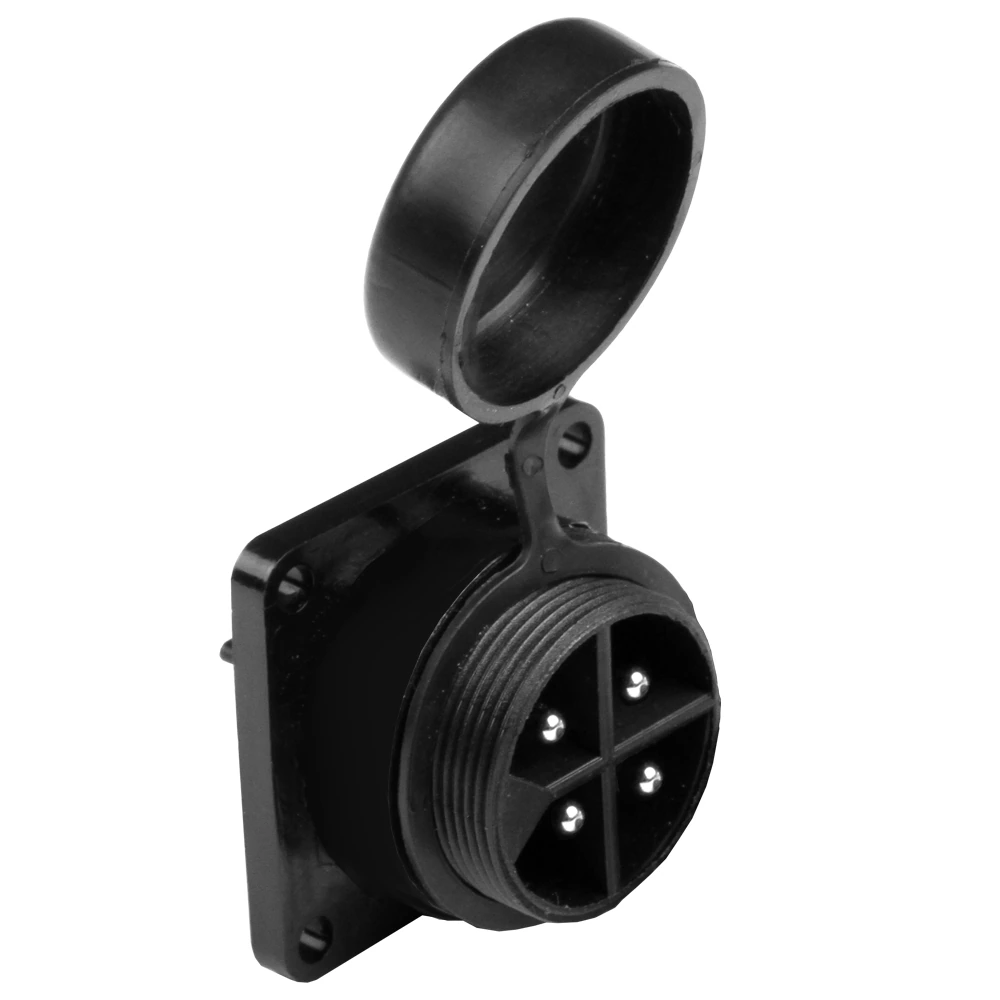

4 Pin Panel Field Assembly Detachable - Pluggable Connector
Part number
WPP-0400M20 Manufacturer
TTAF Elektronik
| Contact Resistance | 30 mΩ max |
|---|---|
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +85°C |
| IP Class | IP68 (10m / 60min) |
| Mold Material | PA6 |
| Contact/Terminal Material | Nickel Plated Brass |
| Seal Material | Silicone |
| Current Rating | 20A max |
| Voltage Rating | 250VAC max |
| Durability Voltage | 3000VAC @ 60 s. |
Request a quote or availability
Send us this part and we will come back with pricing, lead time, and availability.
