Wire to Wire Power
3920 TTAF Elektronik

Images are for reference only See Product Specifications

Wire to Wire Power

3920

Part numbers
39203920-02F3920-02M3920-03F3920-03M3920-04F3920-04M3920-06F3920-06M3920-09F3920-09M3920-12F3920-12M3920-15F3920-15M3920-FT3920-MT
Manufacturer
TTAF Elektronik
Datasheet 1 Datasheet 2 Datasheet 3 Datasheet 4 Datasheet 5 Datasheet 6 Datasheet 7 Datasheet 8 Datasheet 9 Datasheet 10 Datasheet 11 Datasheet 12 Datasheet 13 Datasheet 14 Datasheet 15 Datasheet 16

Ordering information

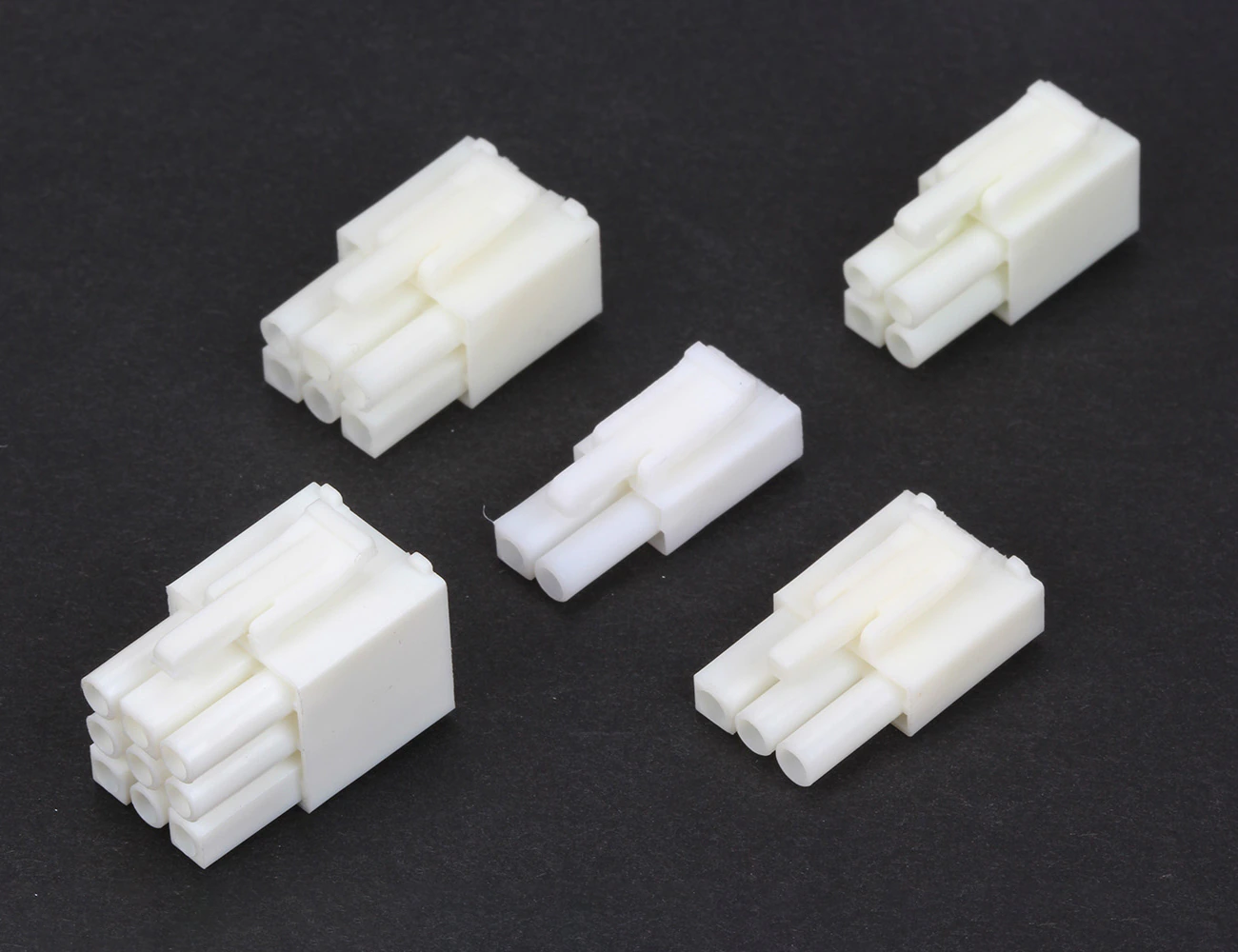

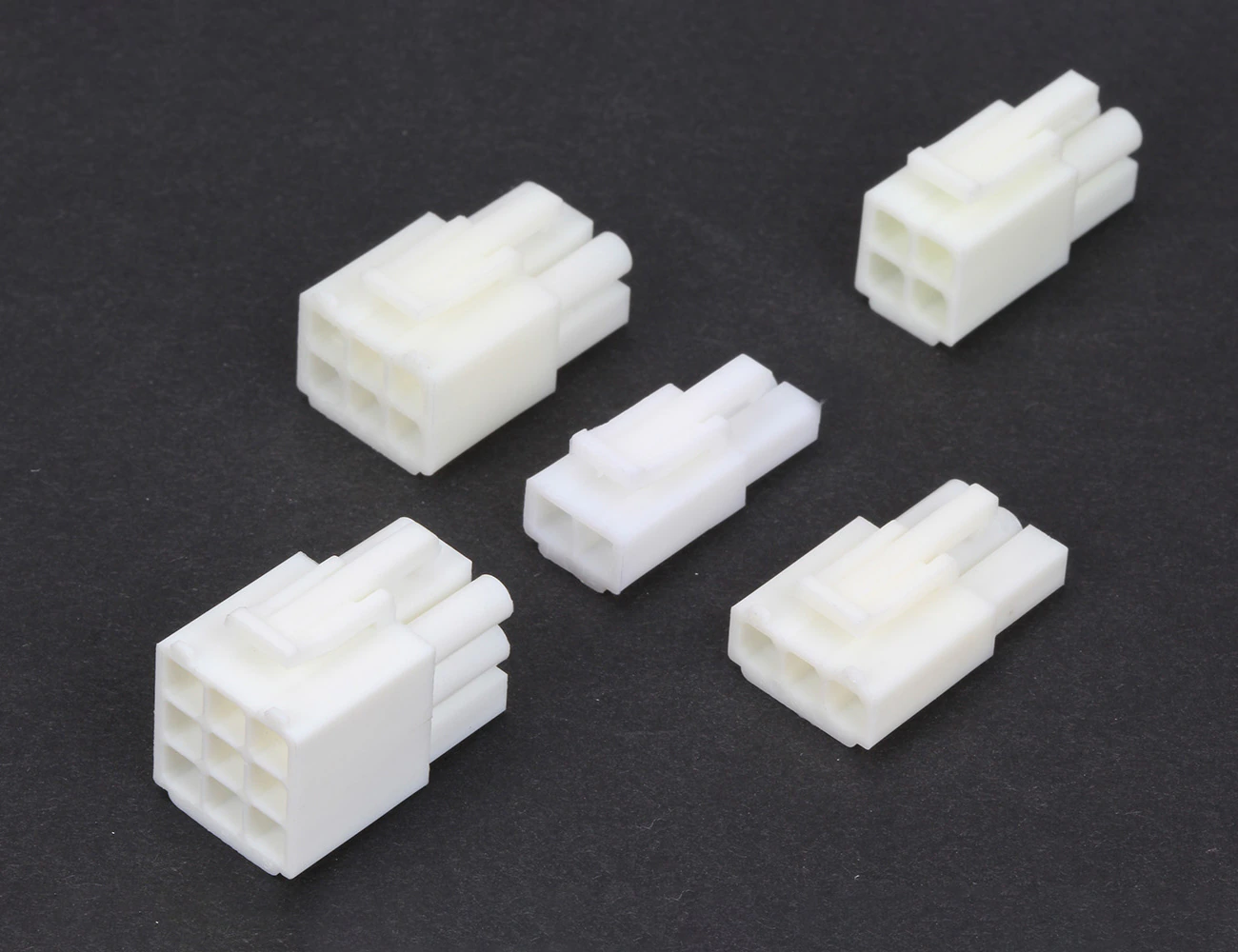

Product CodeProduct DescriptionCurrent ValueVoltage ValueWithstand VoltageBody MaterialOperating Temperature
3920-02F2 Pin 1.30mm Female Housing10A300V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
3920-02M2 Pin 1.30mm Male Housing10A300V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
3920-03F3 Pin 1.30mm Female Housing10A300V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
3920-03M3 Pin 1.30mm Male Housing10A300V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
3920-04F4 Pin 1.30mm Female Housing10A300V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
3920-04M4 Pin 1.30mm Male Housing10A300V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
3920-06F6 Pin 1.30mm Dişi Housing10A300V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
3920-06M6 Pin 1.30mm Male Housing10A300V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
3920-09F9 Pin 1.30mm Female Housing10A300V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
3920-09M9 Pin 1.30mm Male Housing10A300V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
3920-12F12 Pin 1.30mm Female Housing10A300V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
3920-12M12 Pin 1.30mm Male Housing10A300V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
3920-15F15 Pin 1.30mm Female Housing10A300V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
3920-15M15 Pin 1.30mm Male Housing10A300V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C

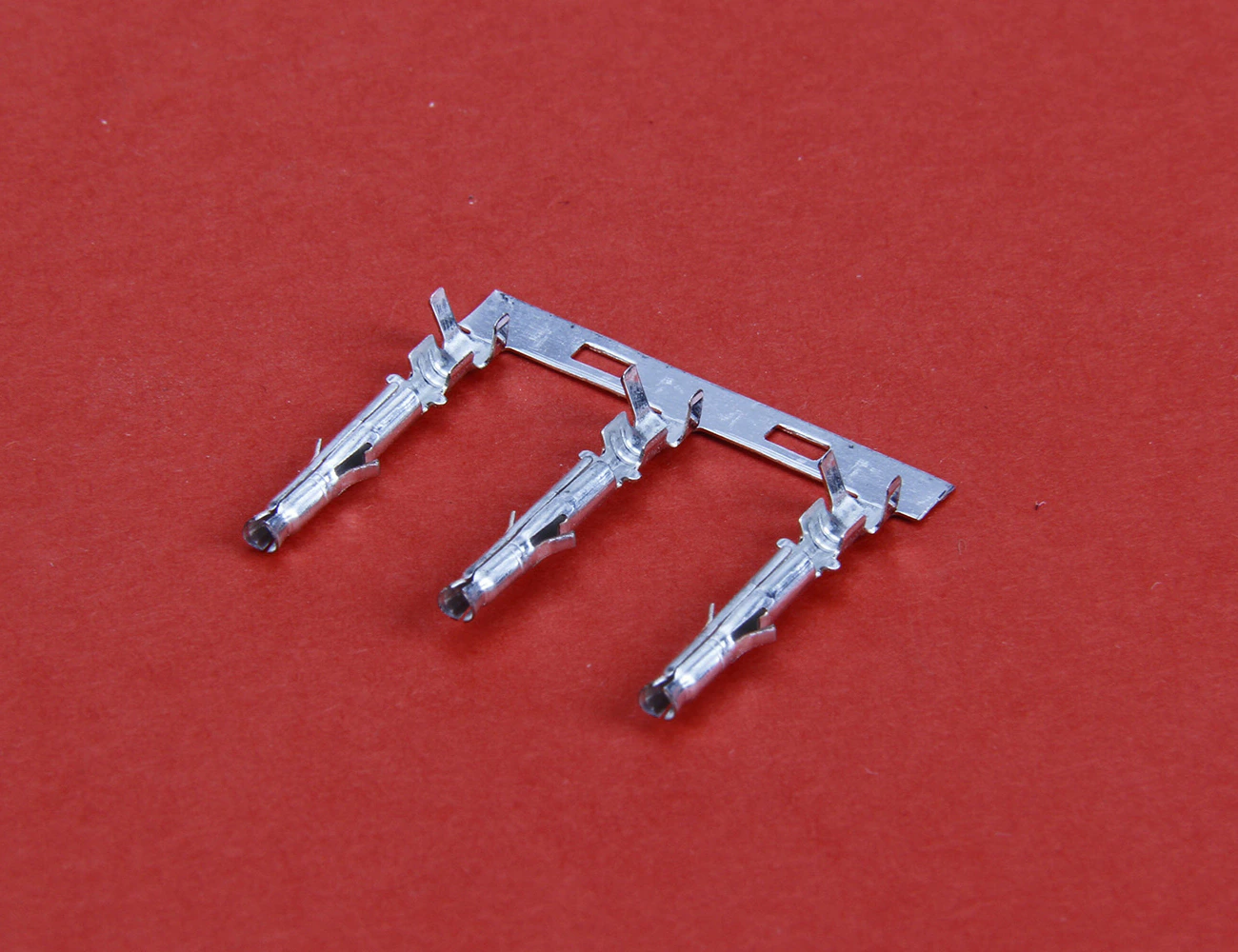

3920-FTCrimp Terminal Female 3920 Series Connector---Brass (Tin Plated)-

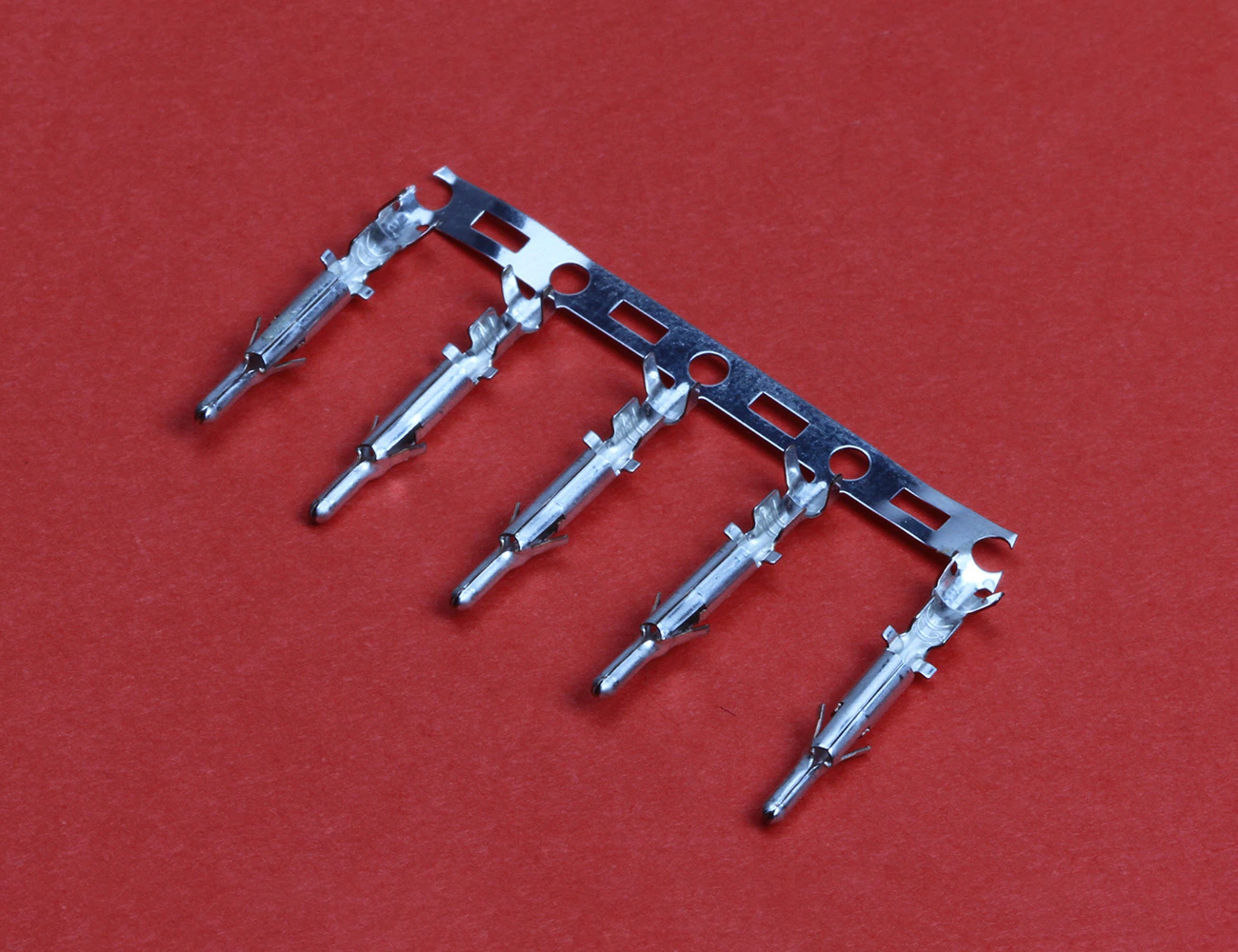

3920-MTCrimp Terminal Male 3920 Series Connector---Brass (Tin Plated)-
