Waterproof Connector Solutions

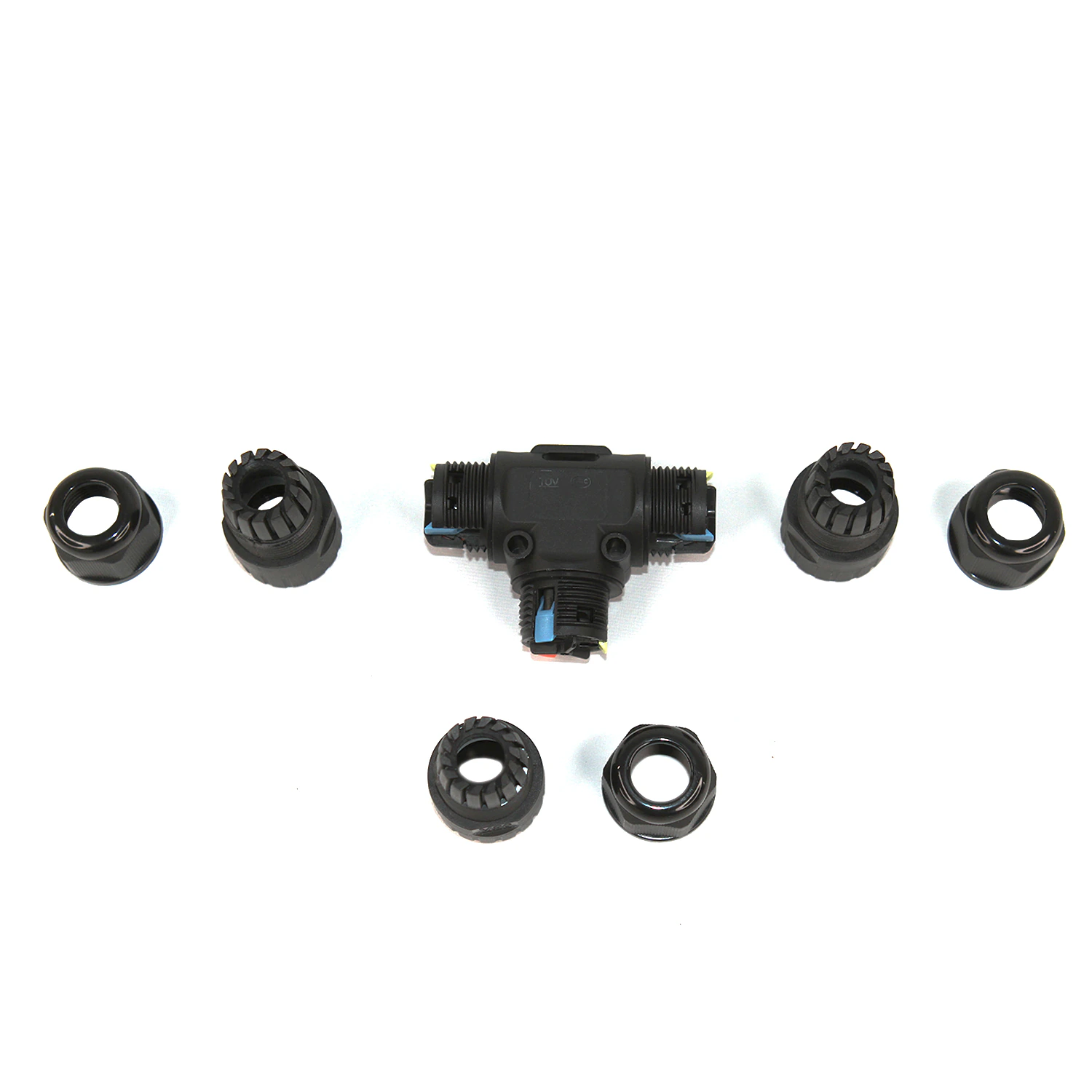

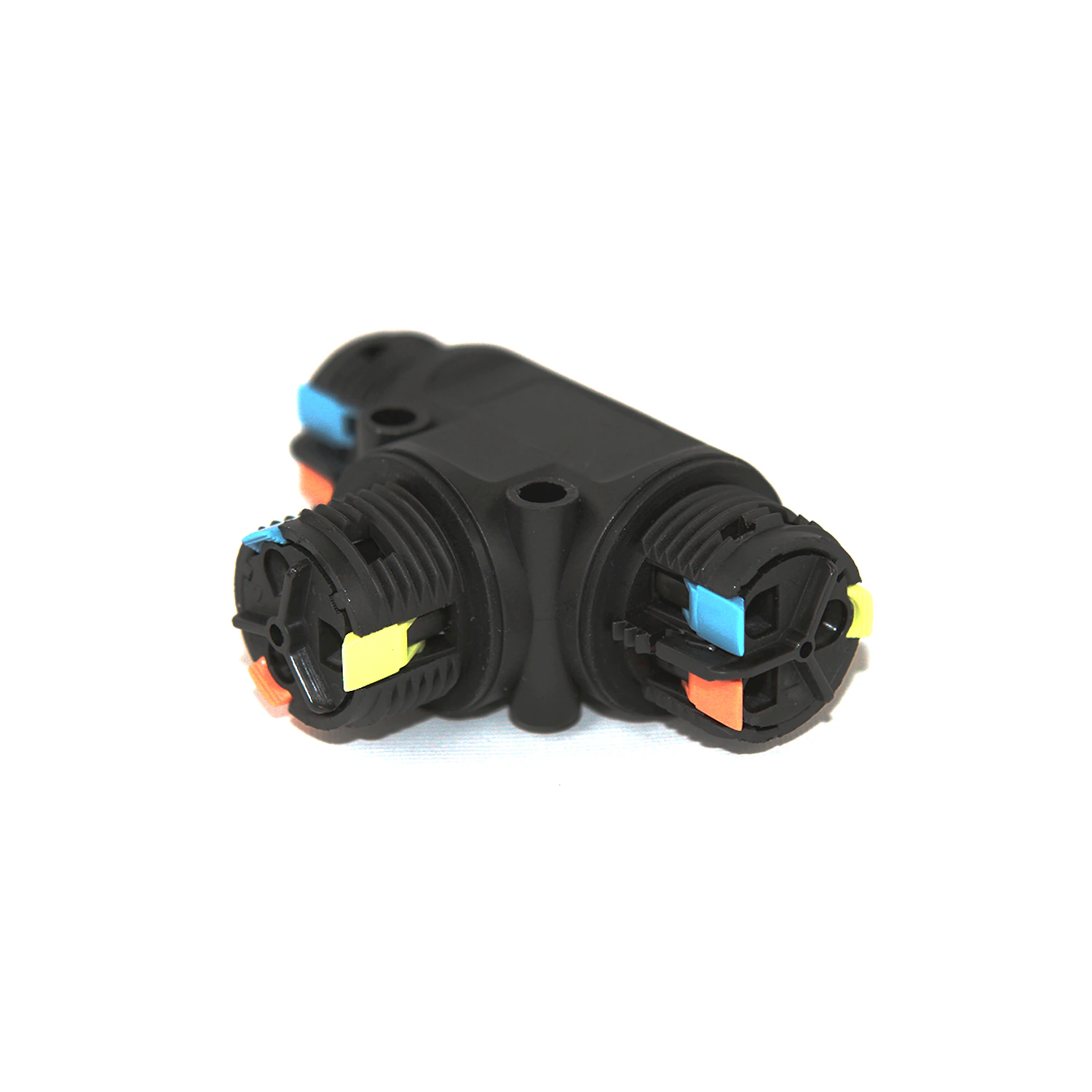

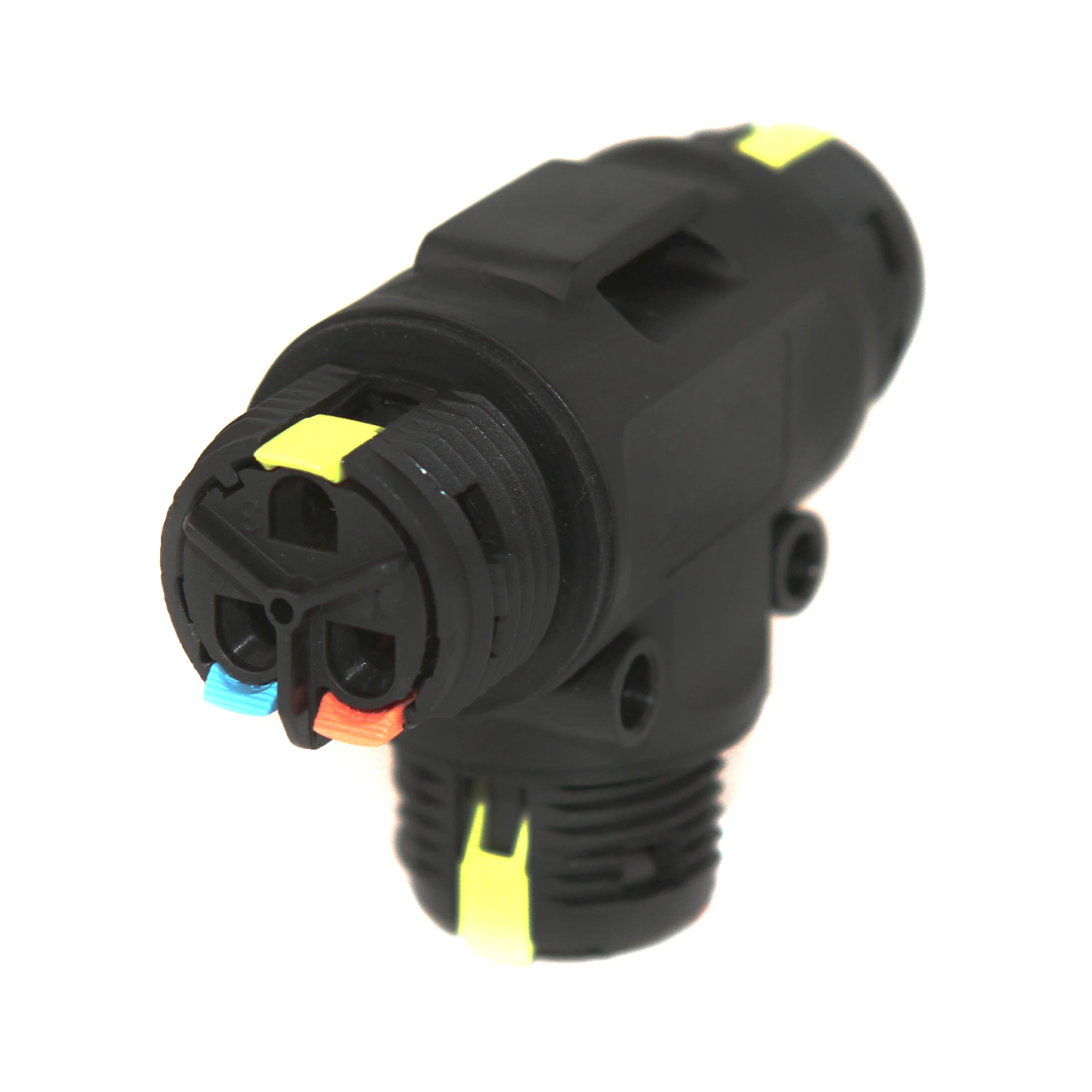

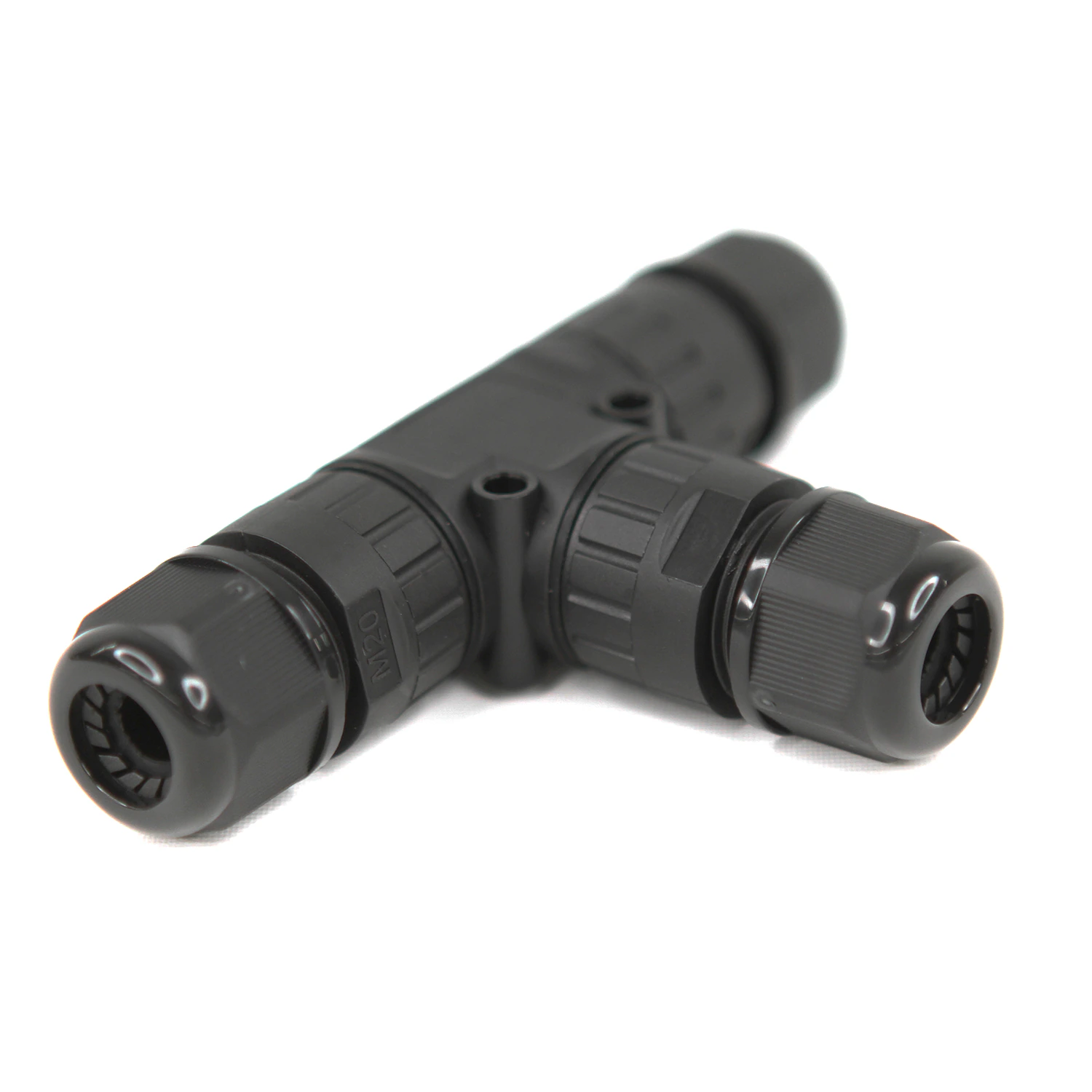

3 Pin Screwless Waterproof T Connector

TTAF Elektronik

Images are for reference only See Product Specifications

Waterproof Connector Solutions

3 Pin Screwless Waterproof T Connector

Part number

WPT-P20T-03M16

Manufacturer

TTAF Elektronik

Datasheet 1 Datasheet 2

WPT-P20T-03M16

Durability Voltage	1500V
Operating Temperature	-40°C ~ +105°C
IP Class	IP68
Max.Cable Cross Section Area	0.5mm2 ~ 2.5mm2
Current Rating	16A max
Voltage Rating	450VAC max

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature
WPT-P20T-03M16	3 Pin Screwless Waterproof T Connector	16A	450VAC max	1500V	UL94 V-2	-40°C ~ +105°C
