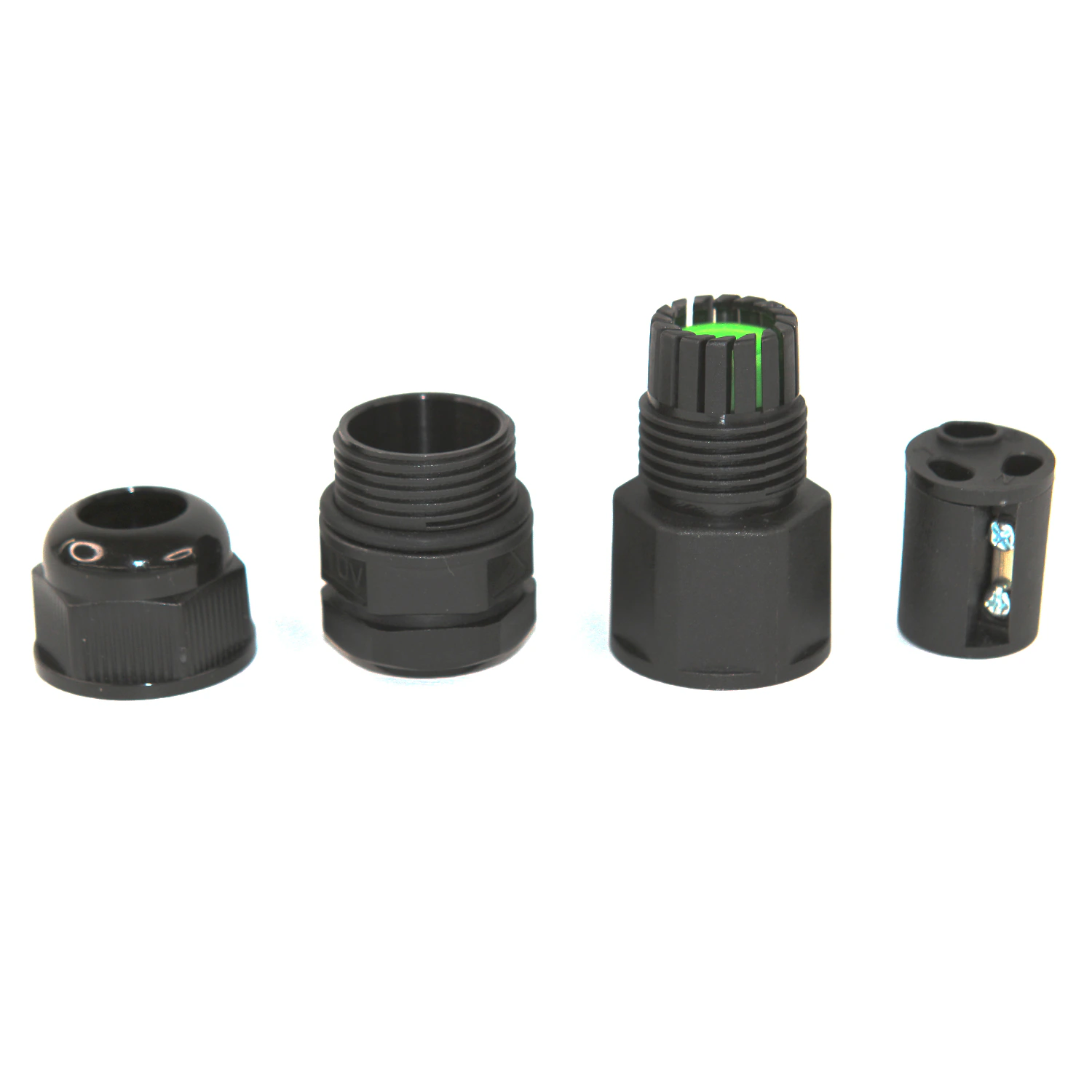

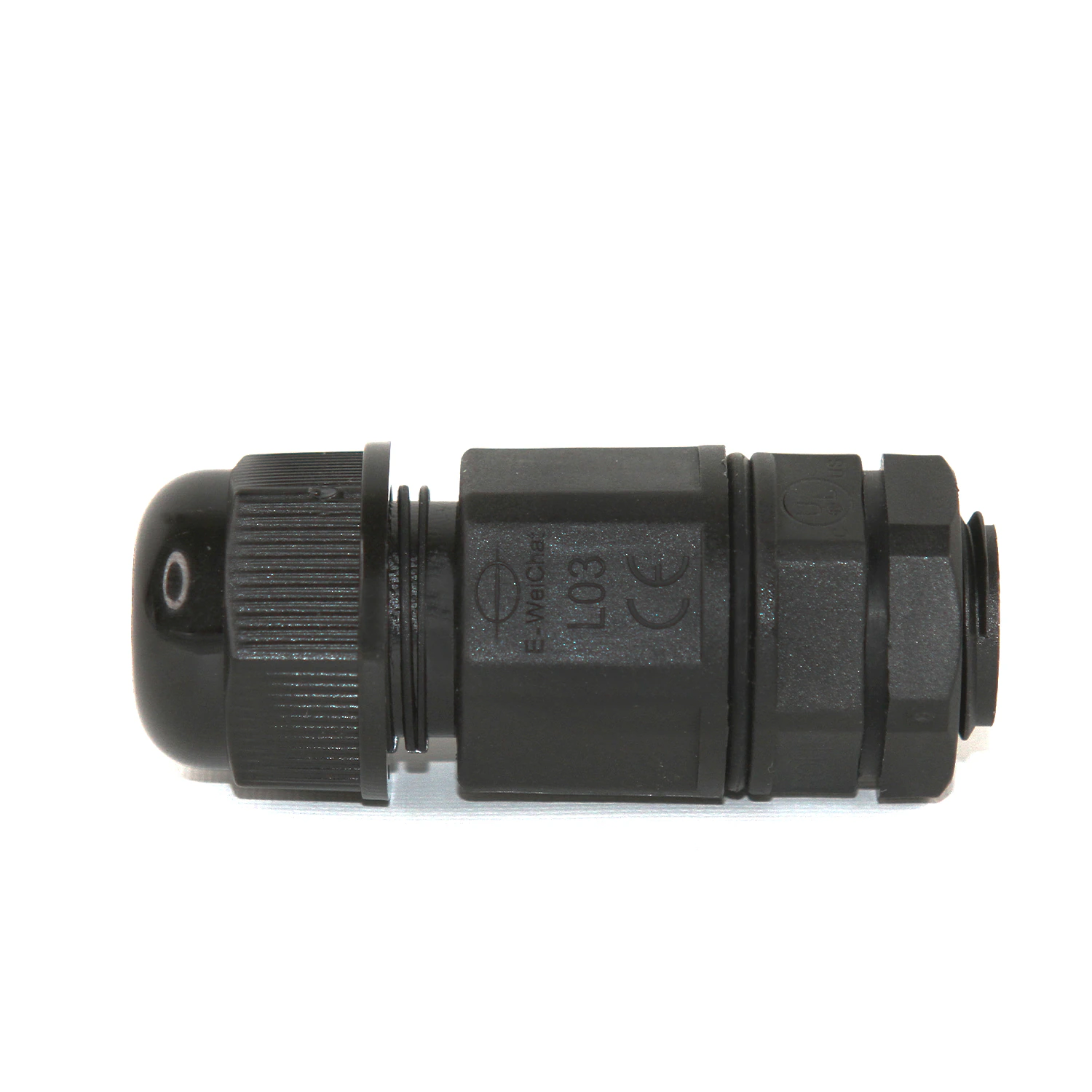

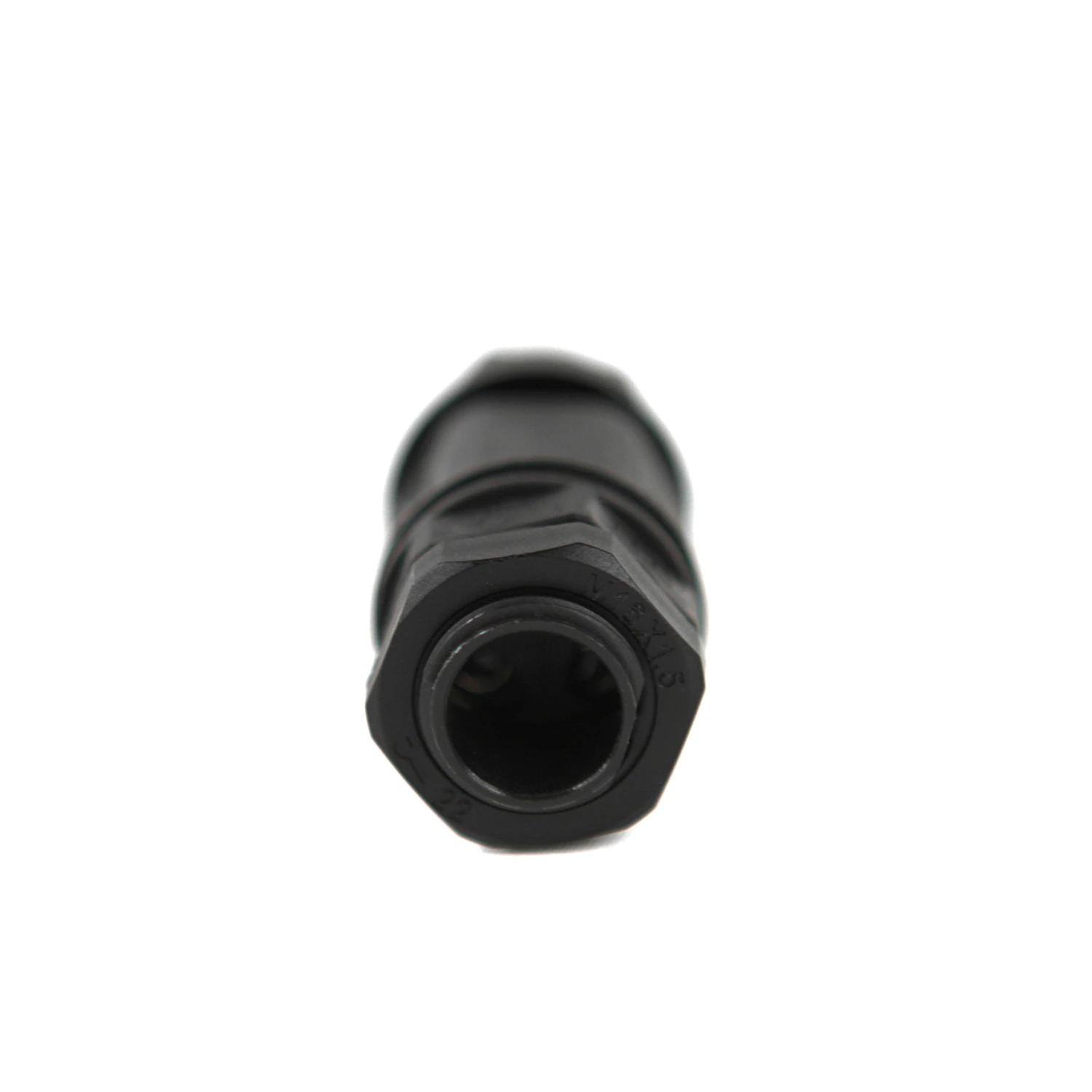

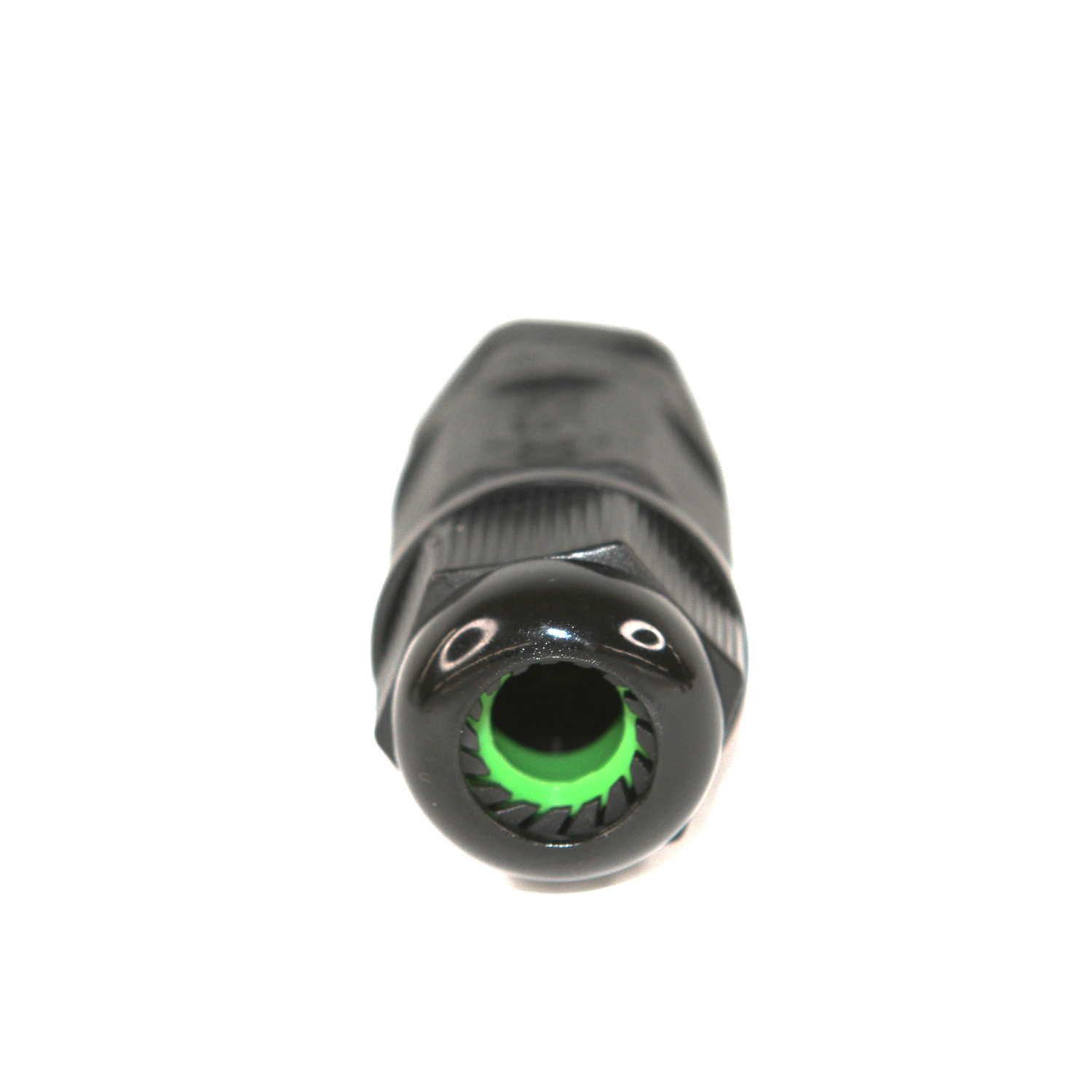

3 Pin Screw Waterproof Panel Type I Connector

TTAF Elektronik

Images are for reference only See Product Specifications

Waterproof Connector Solutions

3 Pin Screw Waterproof Panel Type I Connector

Part number

WPP-L03-03M24

Manufacturer

TTAF Elektronik

Datasheet 1 Datasheet 2

WPP-L03-03M2

Durability Voltage	2500V
Operating Temperature	-40°C ~ +105°C
IP Class	IP68
Max.Cable Cross Section Area	0.5mm2 ~ 2.5mm2
Current Rating	24A max
Voltage Rating	400VAC max

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature
WPP-L03-03M24	3 Pin Screw Waterproof Panel Type I Connector	24A	400VAC max	2500V	UL94 V-2	-40°C ~ +105°C
