Waterproof Connector Solutions

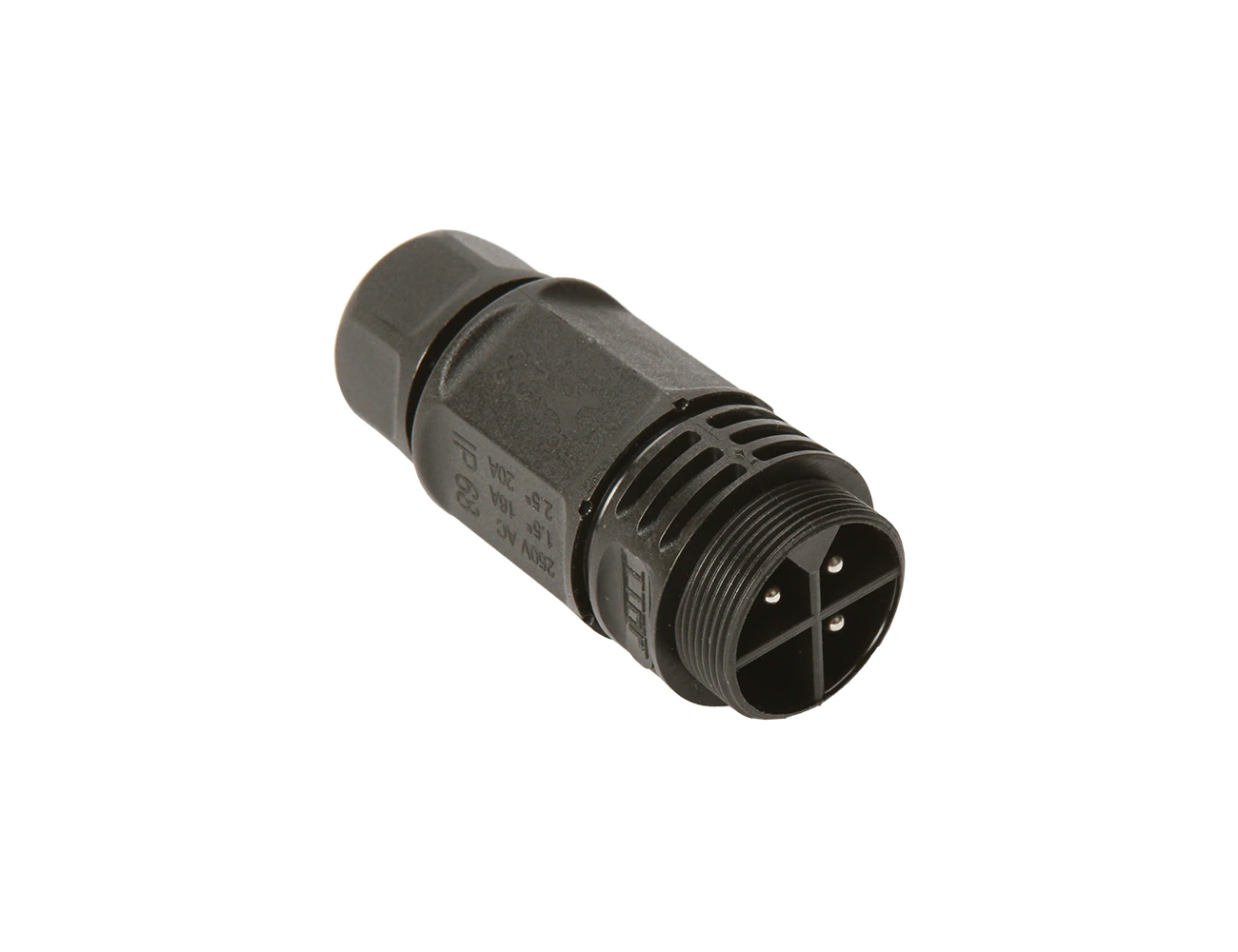

3 Pin Male Type Field Assembly Connector

TTAF Elektronik

Images are for reference only See Product Specifications

Waterproof Connector Solutions

3 Pin Male Type Field Assembly Connector

Part number

WPM-0300M20

Manufacturer

TTAF Elektronik

Min Wire Size OD	6mm
Max Wire Size OD	10mm
Max.Cable Cross Section Area	0.5mm2 ~ 2.5mm2
Contact Resistance	30 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +85°C
IP Class	IP68 (10m /60min)
Mold Material	PA6
Contact/Terminal Material	Nickel-Plated Brass
Seal Material	Silicone
Number of Poles	3
Current Rating	20A max
Voltage Rating	250VAC max
Durability Voltage	3000VAC @ 60 s.
