Images are for reference only See Product Specifications
Wire to Wire Power
200075
Part numbers
200075200075-02F200075-02M200075-03F200075-03M200075-04F200075-04M200075-06F200075-06M200075-08F200075-08M200075-TF200075-TM Manufacturer
TTAF Elektronik
Ordering information
| Product Code | Product Description | Current Value | Voltage Value | Withstand Voltage | Body Material | Operating Temperature |
|---|---|---|---|---|---|---|
| 200075-02F | 2 Pin 6.00mm Double Row Female Housing | 20A | - | - | Nylon 66 | -40°C to +120°C |
| 200075-02M | 2 Pin 6.00mm Double Row Male Housing | 20A | - | - | Nylon 66 | -40°C to +120°C |
| 200075-03F | 3 Pin 6.00mm Double Row Female Housing | 20A | - | - | Nylon 66 | -40°C to +120°C |
| 200075-03M | 3 Pin 6.00mm Double Row Male Housing | 20A | - | - | Nylon 66 | -40°C to +120°C |
| 200075-04F | 4 Pin 6.00mm Double Row Female Housing | 20A | - | - | Nylon 66 | -40°C to +120°C |
| 200075-04M | 4 Pin 6.00mm Double Row Male Housing | 20A | - | - | Nylon 66 | -40°C to +120°C |
| 200075-06F | 6 Pin 6.00mm Double Row Female Housing | 20A | - | - | Nylon 66 | -40°C to +120°C |
| 200075-06M | 6 Pin 6.00mm Double Row Male Housing | 20A | - | - | Nylon 66 | -40°C to +120°C |
| 200075-08F | 8 Pin 6.00mm Double Row Female Housing | 20A | - | - | Nylon 66 | -40°C to +120°C |
| 200075-08M | 8 Pin 6.00mm Çift Sıra Erkek Housing | 20A | - | - | Nylon 66 | -40°C to +120°C |

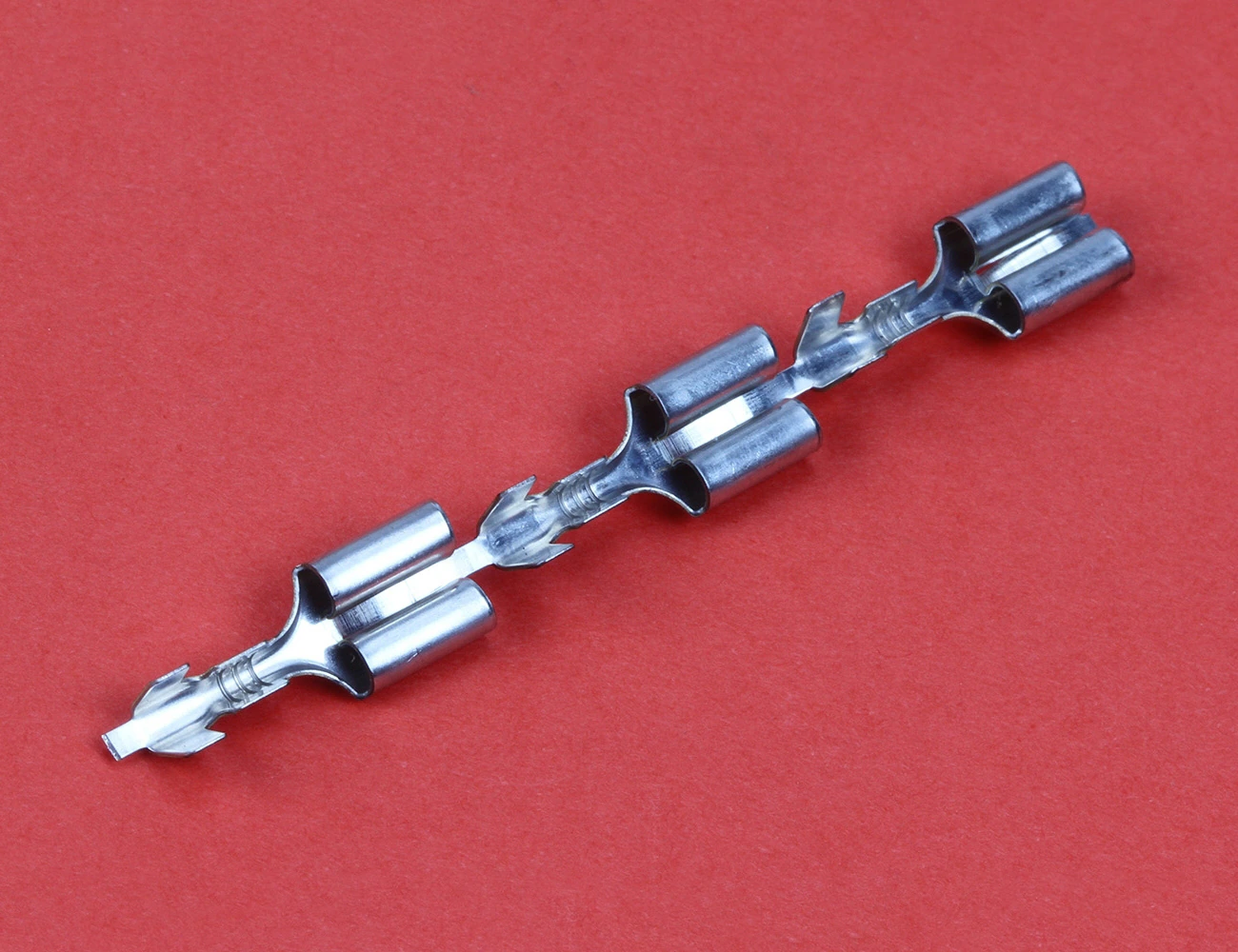

| 200075-TF | 200075-TF Terminal | - | - | - | Brass (Tin Plated) | - |

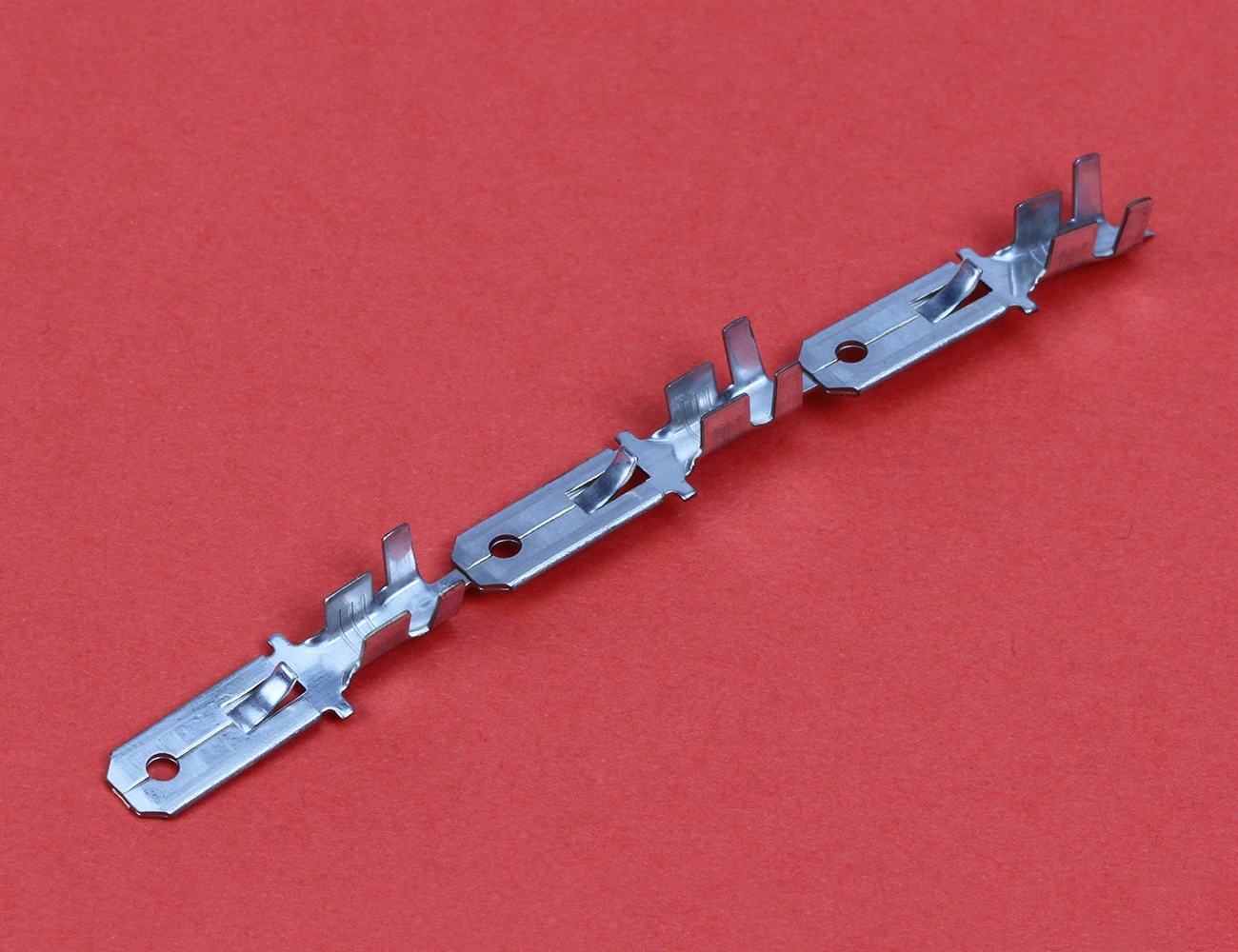

| 200075-TM | 200075-TM Terminal | - | - | - | Brass (Tin Plated) | - |
Request a quote or availability
Send us this part and we will come back with pricing, lead time, and availability.
