Images are for reference only See Product Specifications
Waterproof Connector Solutions

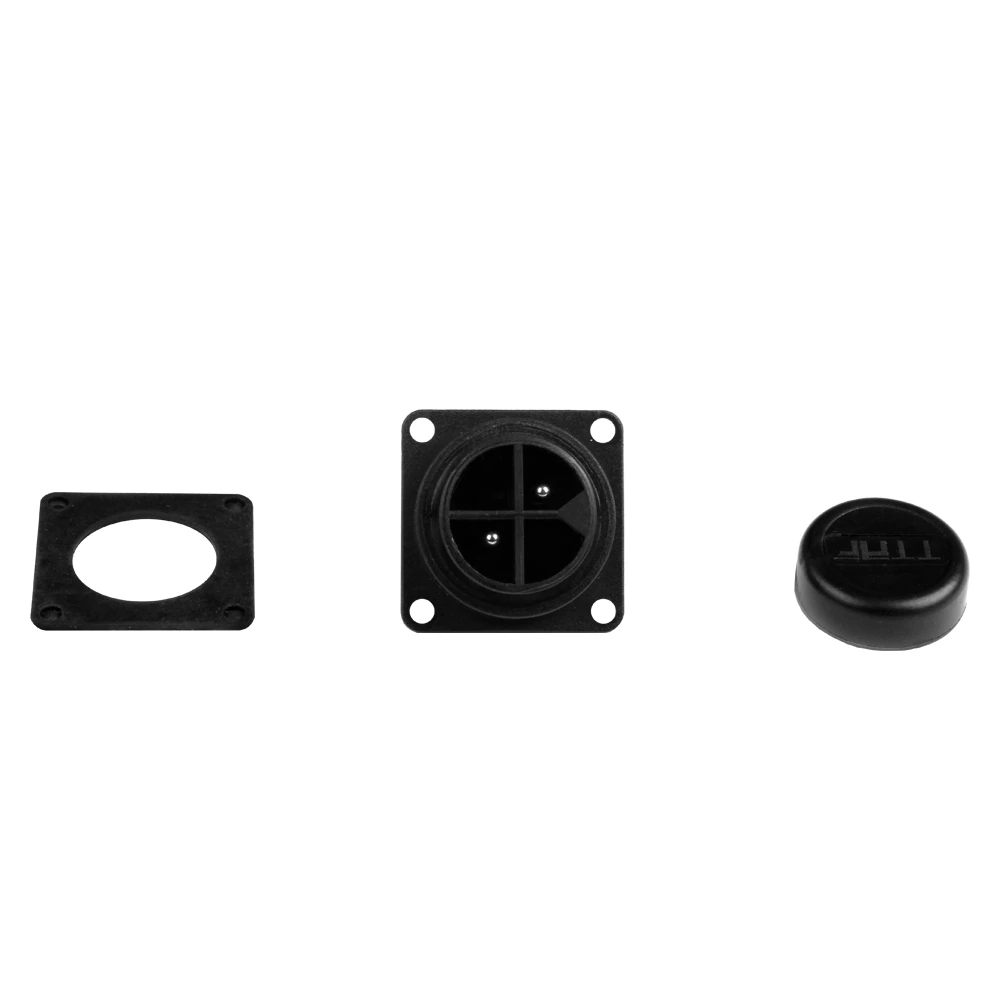

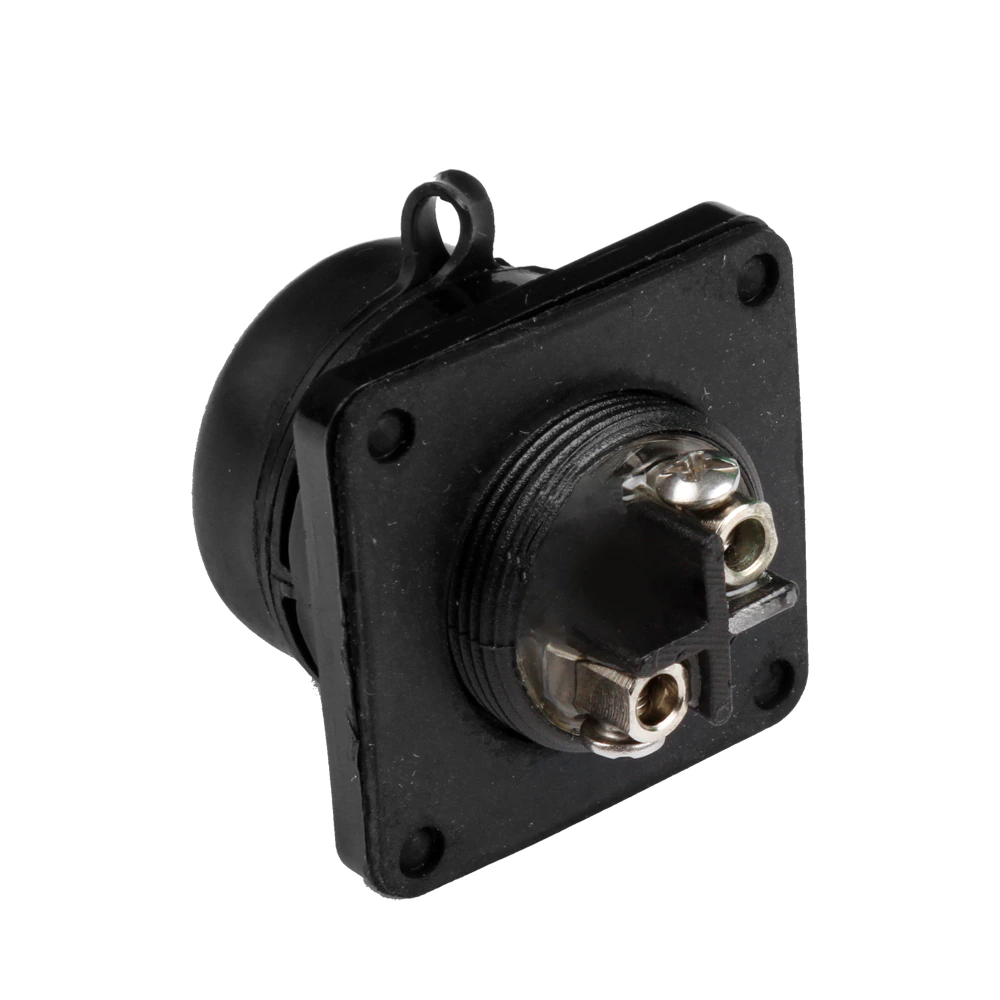

2 Pin Panel Type Field Assembly Connector
Part number
WPP-0200M20 Manufacturer
TTAF Elektronik
| Contact Resistance | 30 mΩ max |
|---|---|
| Insulation Resistance | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +85°C |
| IP Class | IP68 (10m /60min) |
| Mold Materia | PA6 |
| Contact/Terminal Material | Nickel Plated Brass |
| Seal Material | Silicone |
| Current Rating | 20A max |
| Voltage Rating | 250VAC max |
| Durability Voltage | 3000VAC @ 60 s. |
