Images are for reference only See Product Specifications
Waterproof Connector Solutions

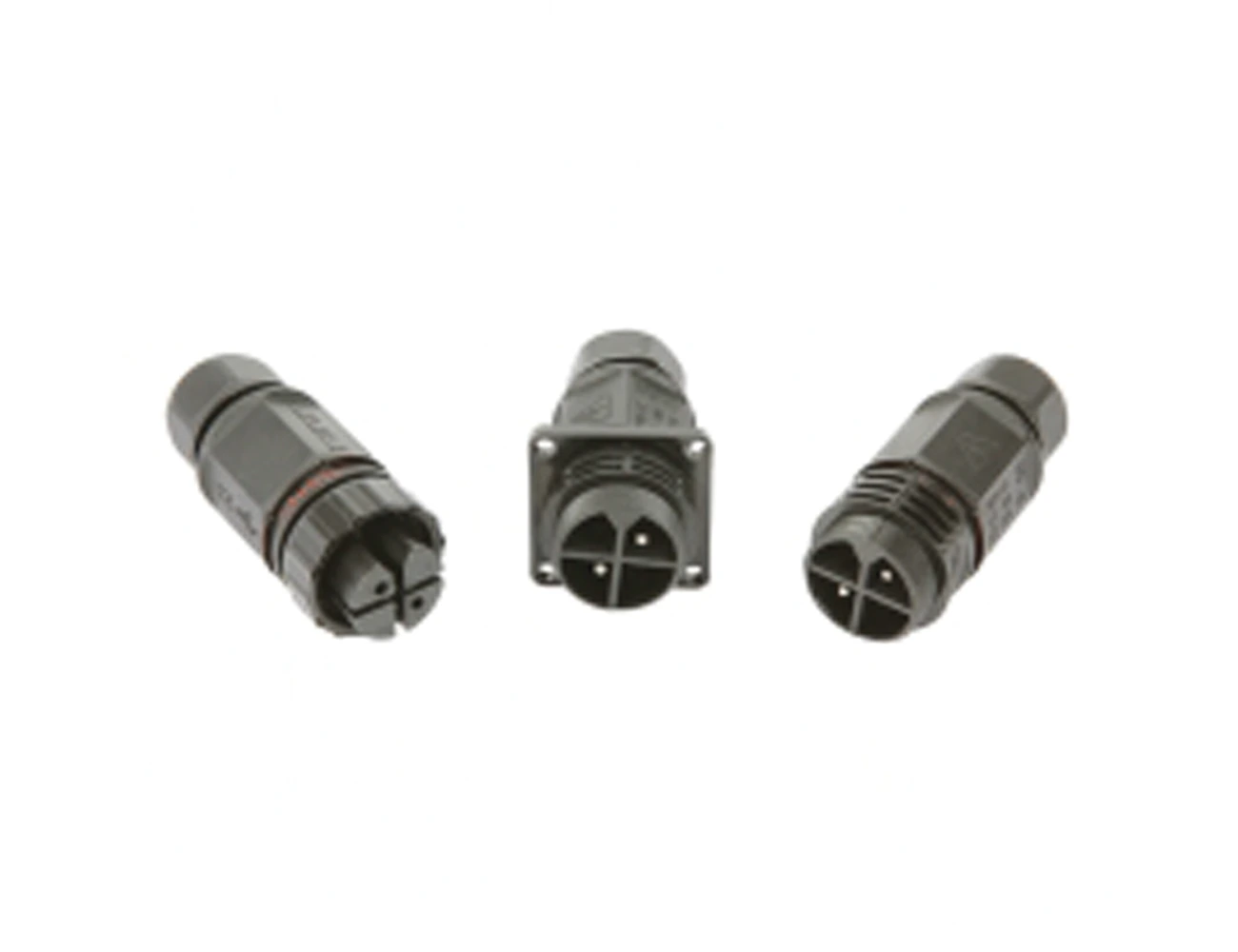

2 Pin Female Field Assembly Pluggable Connector
Part numbers
WPF-0200M20- Manufacturer
TTAF Elektronik
You can find detailed technical data, datasheet, technical drawing document and all details of the 2 Pin female field assembly detachable connector from the list area at the bottom of the technical specifications.
| Min Wire Size OD | 6mm |
|---|---|
| Max Wire Size OD | 10mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
| Contact Resistance | 30 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +85°C |
| IP Class | IP68 (10m / 60min) |
| Mold Material | PA6 |
| Contact/Terminal Material | Nickel-Plated Brass |
| Seal Material | Silicone |
| Current Rating | 20A max |
| Voltage Rating | 250VAC max |
| Durability Voltage | 3000VAC @ 60 s. |
Ordering information
| Product Code | Product Description | Current Value | Voltage Value | Withstand Voltage | Body Material | Operating Temperature |
|---|---|---|---|---|---|---|
| - | Female Field Installation | 20A | - | - | 30 mΩ max | - |
Request a quote or availability
Send us this part and we will come back with pricing, lead time, and availability.
