Pin Header & Sockets

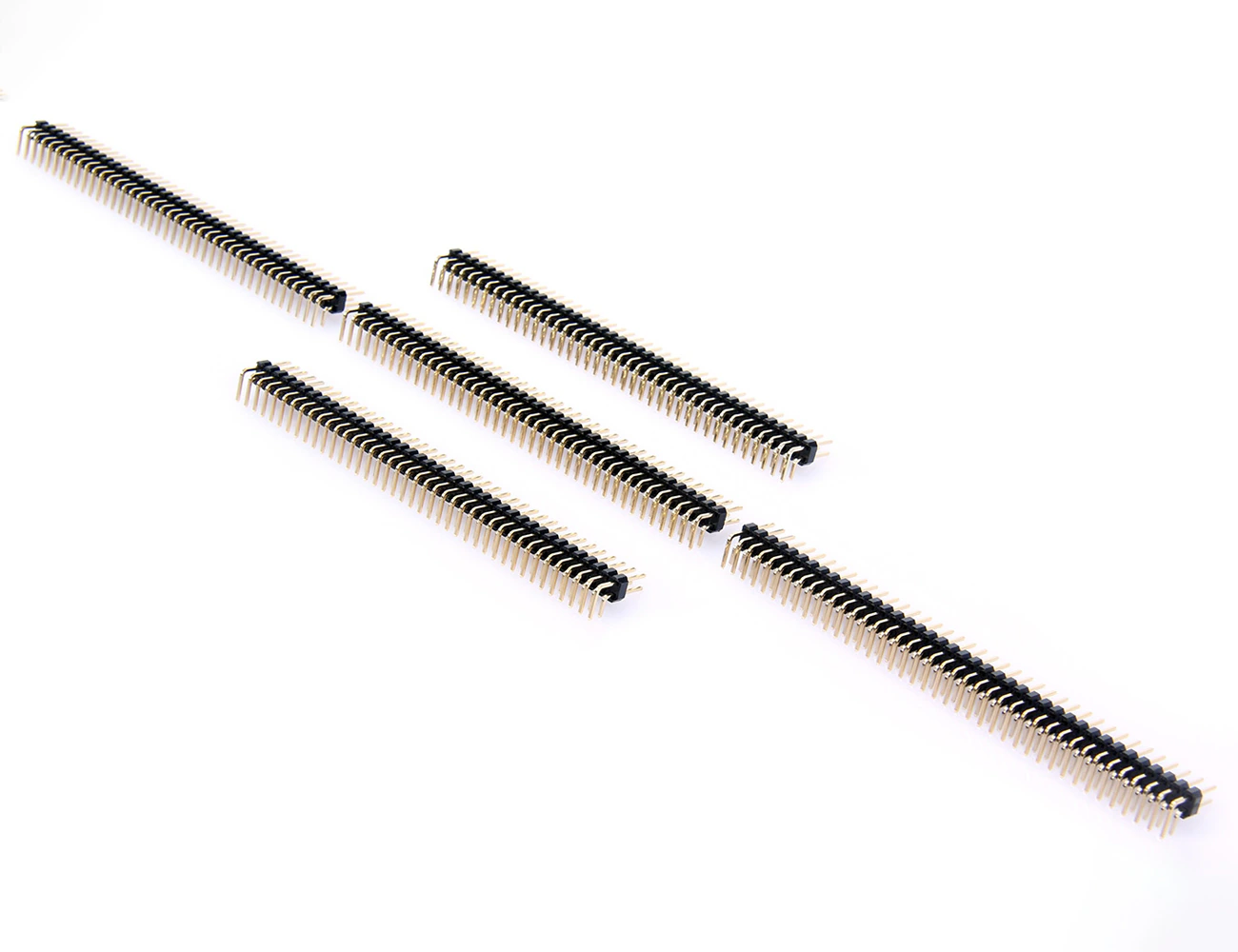

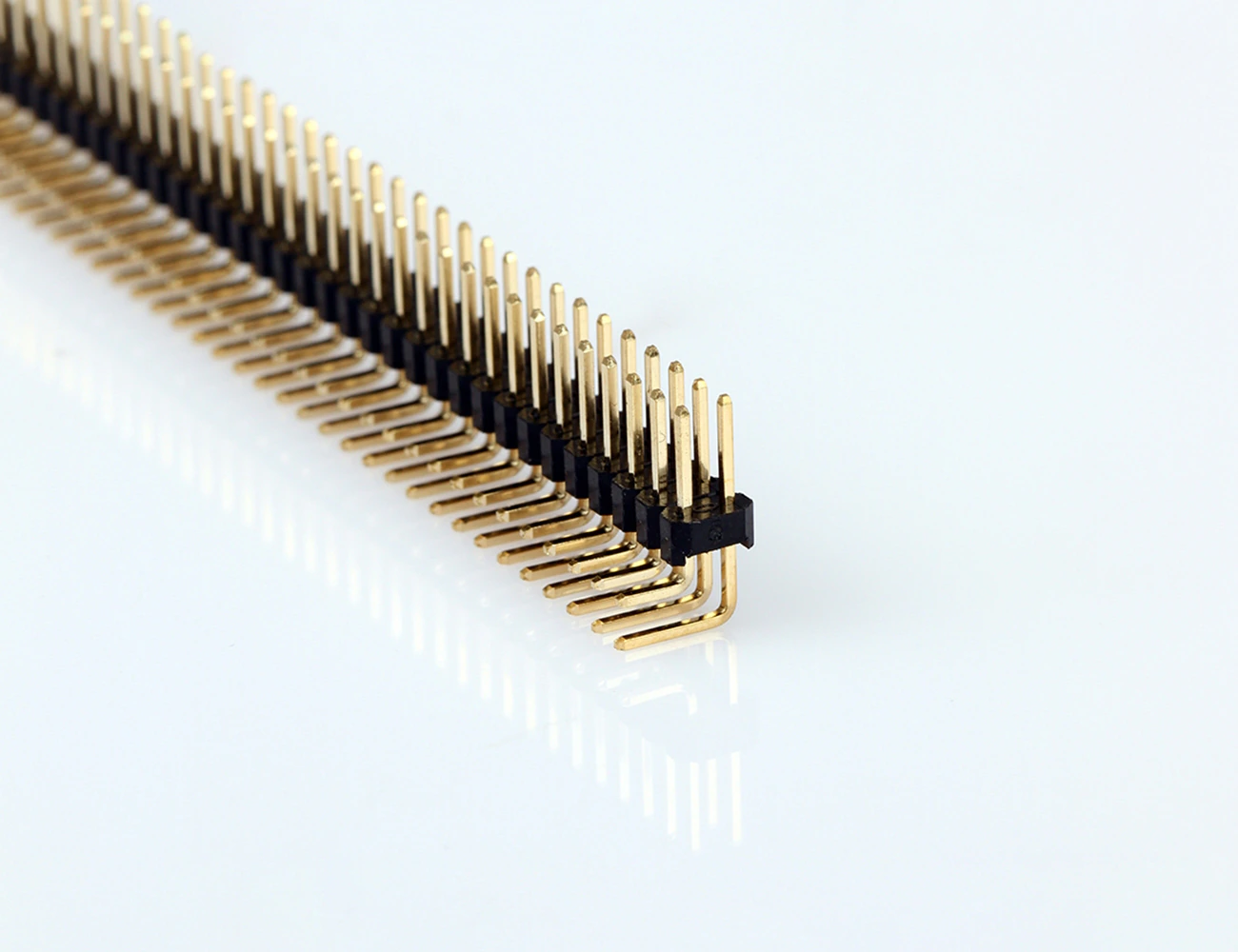

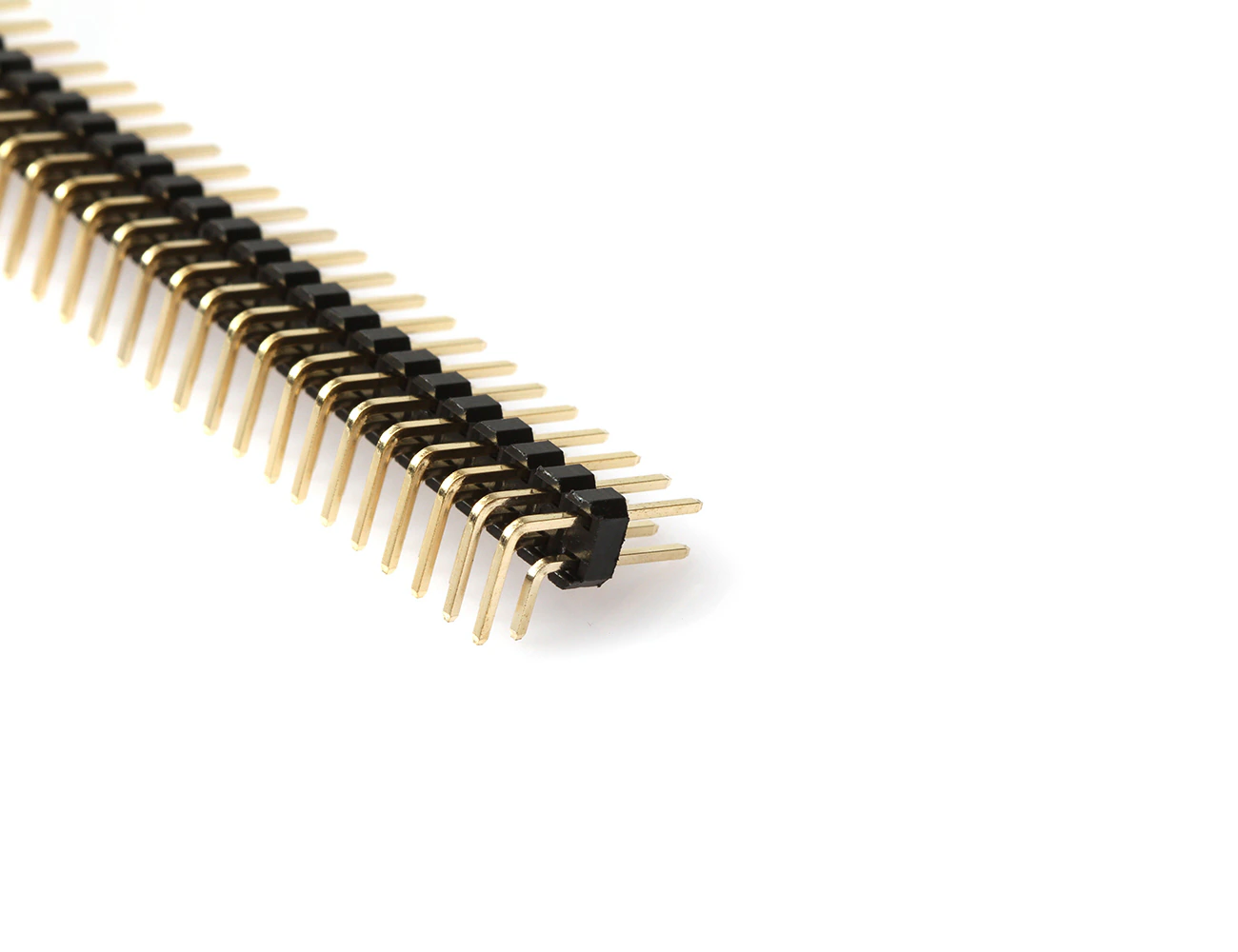

2x40 Pin 2.54mm Dual Row DIP Pcb Type Right Angle Male Pin Header TTAF Elektronik

Images are for reference only See Product Specifications

Pin Header & Sockets

2x40 Pin 2.54mm Dual Row DIP Pcb Type Right Angle Male Pin Header

Part number
1307-2x40RCA
Manufacturer
TTAF Elektronik
Datasheet
MaterialP.B.T UL94V-0
Pin MaterialBrass
FinishGold Plated
Contact No2 - 80
Voltage Rating250V / AC / DC
Current Rating3A
Withstanding Voltage1000V/minute
Insulation Resistance1000MΩ Mın
Temperature Range-25°C to +85°C
Contact Resistance20mΩ max.
