Images are for reference only See Product Specifications
Pin Header & Sockets

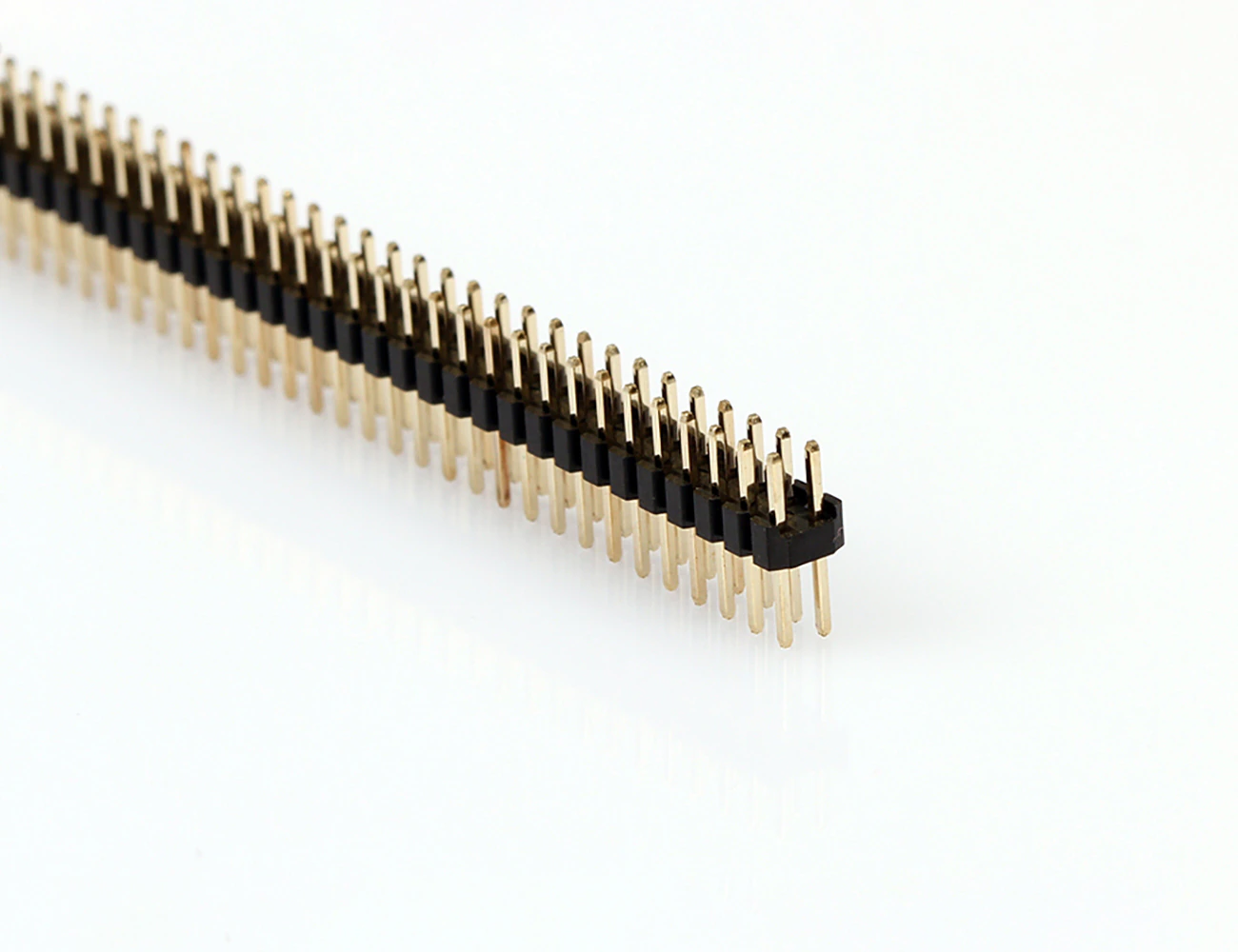

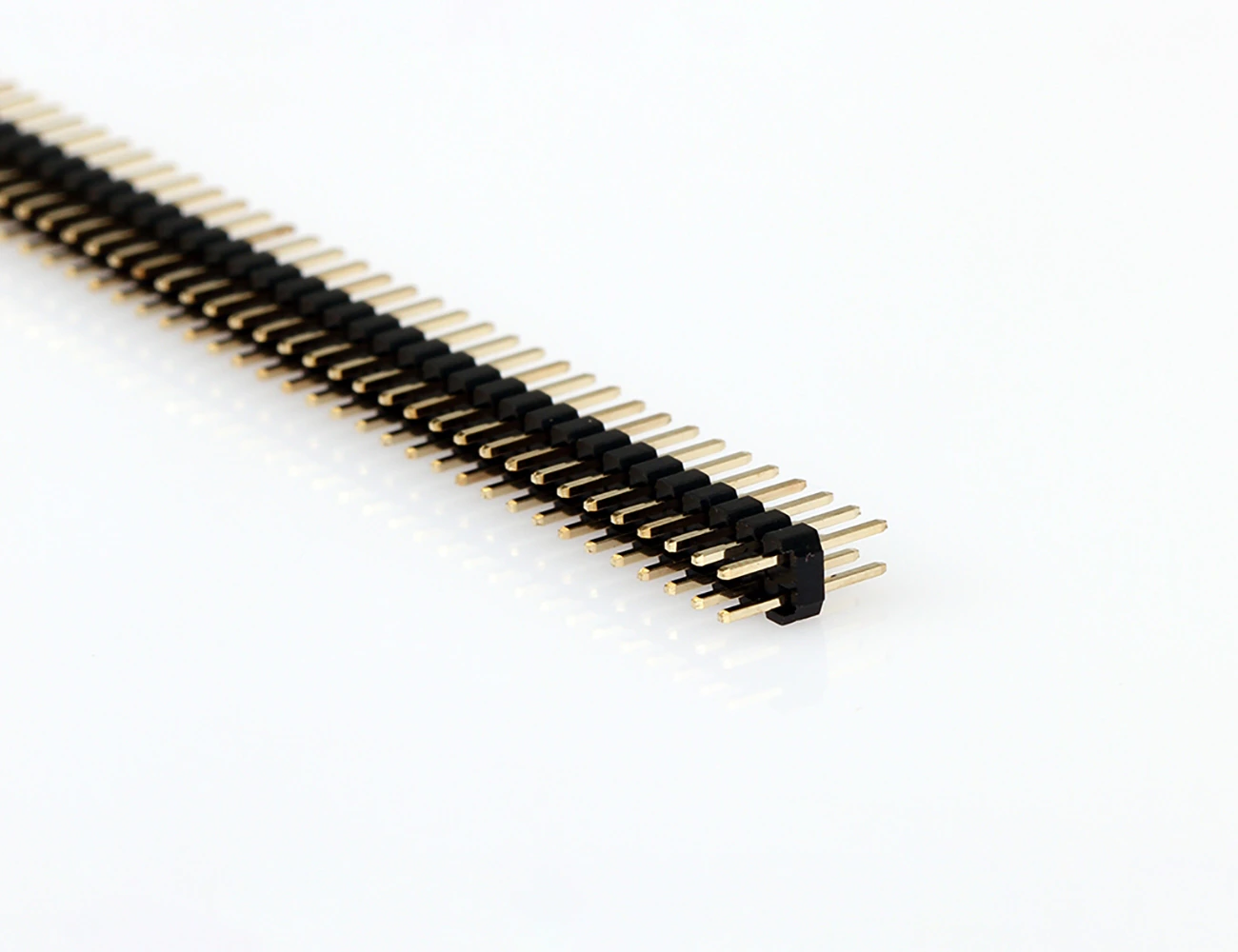

2x40 Pin 2.00mm Dual Row DIP Pcb Type Straight Male Pin Header
Part number
1307-2x40SCB Manufacturer
TTAF Elektronik
| Material | Nylon 6T UL94V-0 |
|---|---|
| Pin Material | Brass |
| Finish | Tin-Gold Plated |
| Contact No | 2 - 40 |
| Voltage Rating | 250V / AC / DC |
| Current Rating | 2A |
| Withstanding Voltage | 800V/minute |
| Insulation Resistance | 1000MΩ Mın |
| Temperature Range | -25°C to +85°C |
| Contact Resistance | 20mΩ max. |
Request a quote or availability
Send us this part and we will come back with pricing, lead time, and availability.
