Pin Header & Sockets
2x40 Pin 1.27mm Dual Row SMD Pcb Type Straight Male Pin Header TTAF Elektronik

Images are for reference only See Product Specifications

Pin Header & Sockets

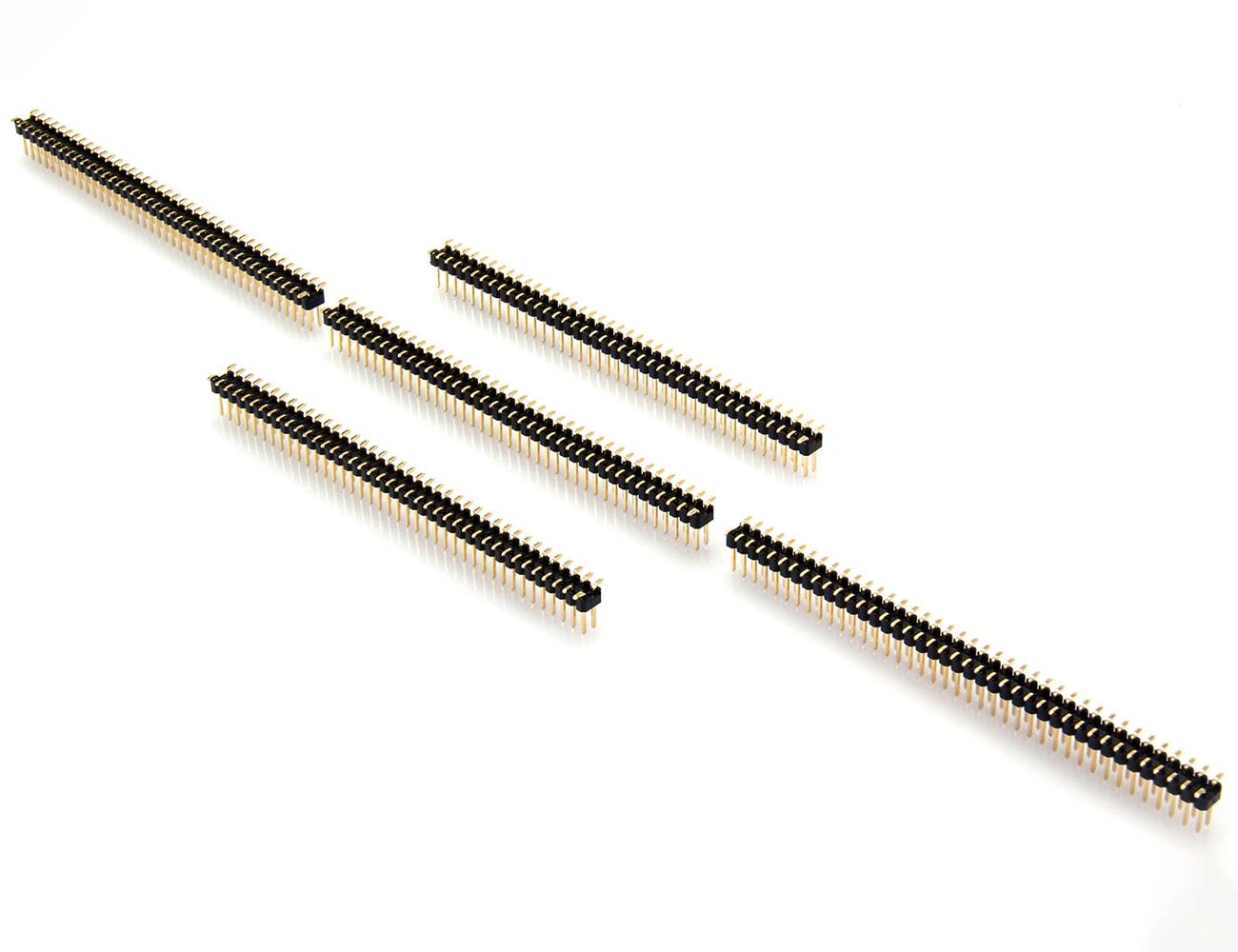

2x40 Pin 1.27mm Dual Row SMD Pcb Type Straight Male Pin Header

Part number
1317-2x40SCD
Manufacturer
TTAF Elektronik
MaterialNylon 6T UL94V-0
Pin MaterialBrass
FinishGold Plated
Contact No2 - 80
Voltage Rating130V / AC / DC
Current Rating1A
Withstanding Voltage800V/minute
Insulation Resistance1000MΩ Mın
Temperature Range-25°C to +85°C
Contact Resistance20mΩ max.
