Images are for reference only See Product Specifications
Pin Header & Sockets

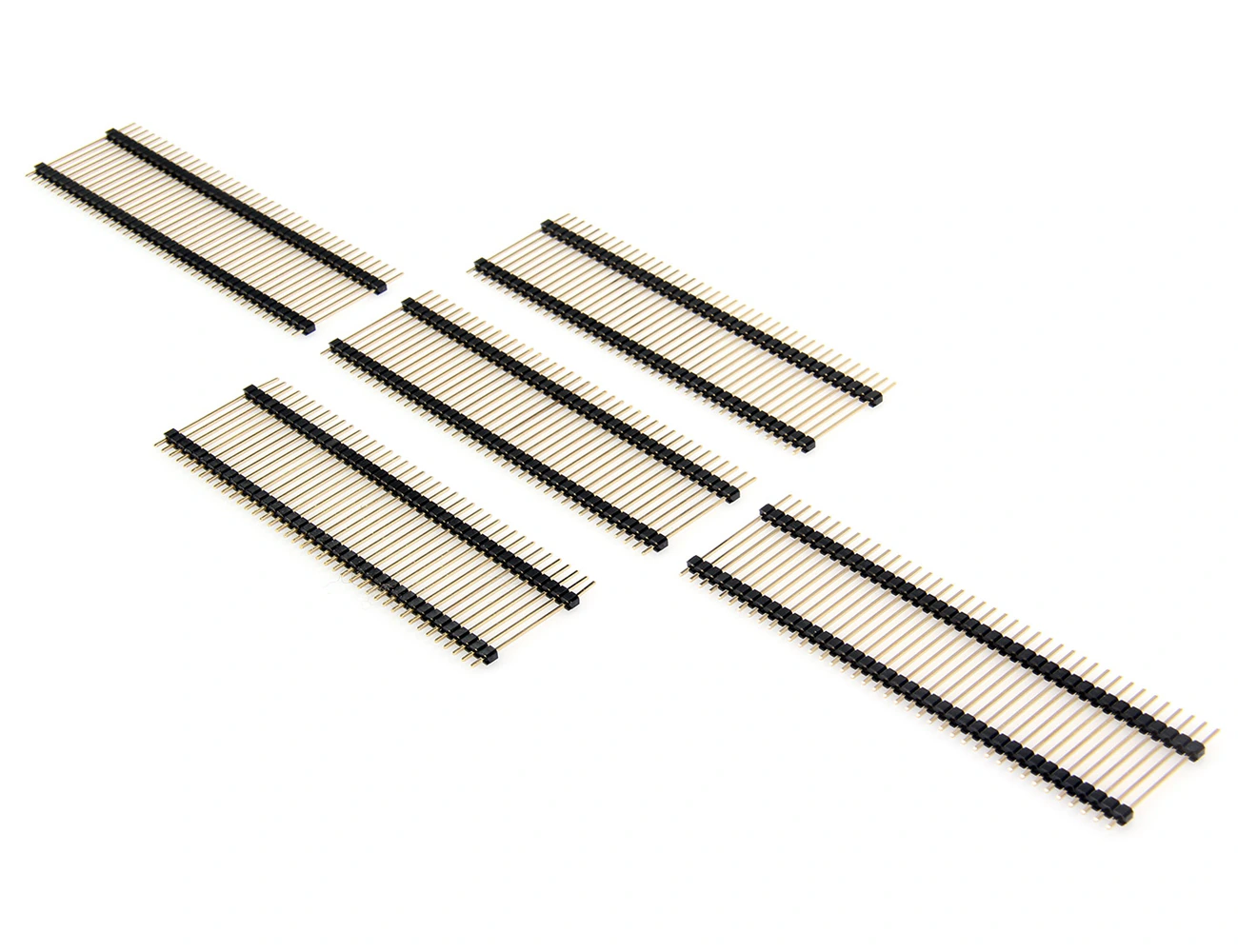

1x40 Pin 2.54mm Single Row DIP Pcb Type Straight Insulator Male Pin Header
Part number
1409-1x40ST Manufacturer
TTAF Elektronik
| Material | Nylon 6T UL94V-0 |
|---|---|
| Pin Material | Brass |
| Finish | Gold Plated |
| Contact No | 1 - 40 |
| Voltage Rating | 350V / AC / DC |
| Current Rating | 3A |
| Withstanding Voltage | 1000V/minute |
| Insulation Resistance | 1000MΩ Mın |
| Temperature Range | -25°C to +85°C |
Request a quote or availability
Send us this part and we will come back with pricing, lead time, and availability.
