Pin Header & Sockets
1x40 Pin 2.00mm Single Row DIP Pcb Type Straight Female Pin Header TTAF Elektronik

Images are for reference only See Product Specifications

Pin Header & Sockets

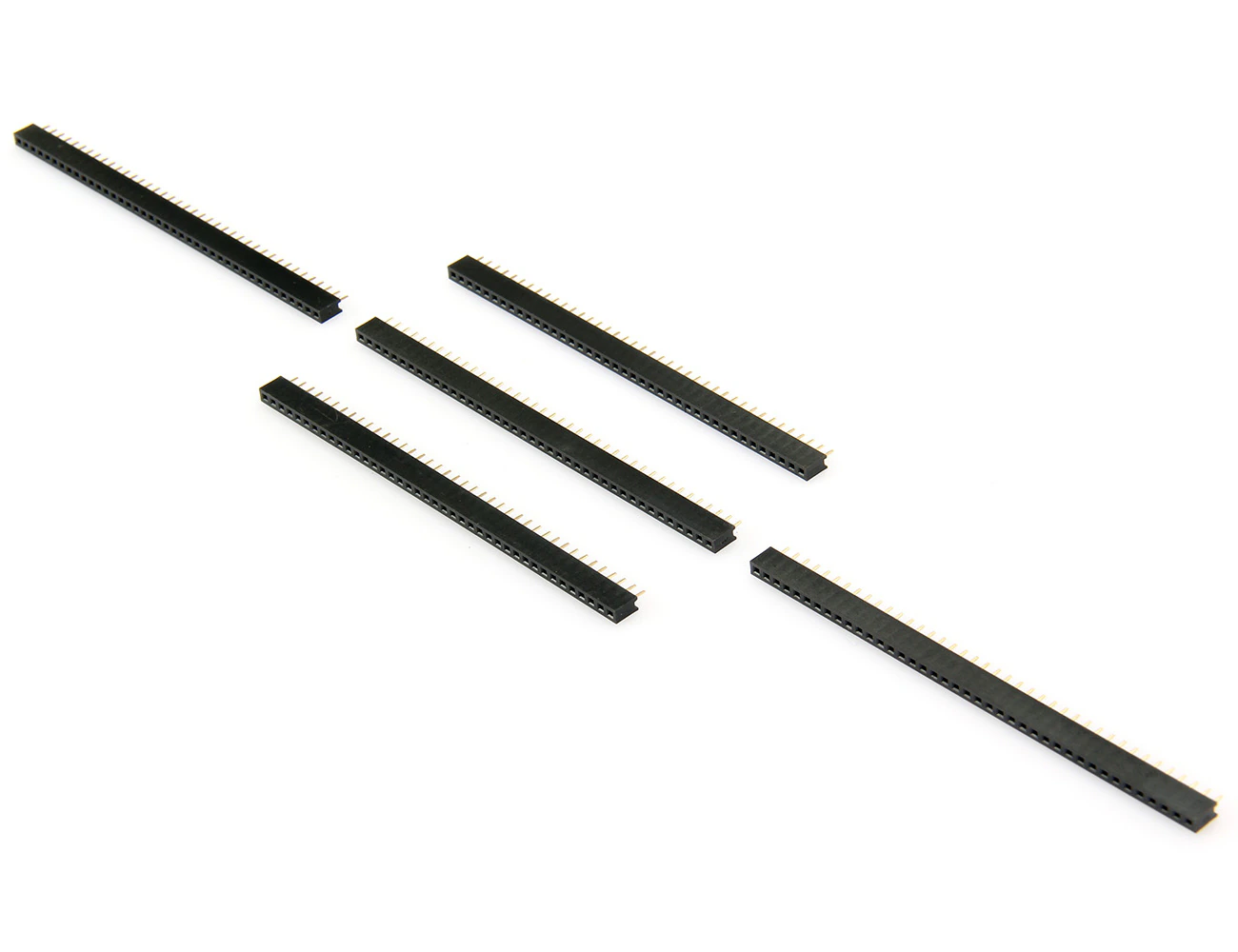

1x40 Pin 2.00mm Single Row DIP Pcb Type Straight Female Pin Header

Part number
1309-1x40STB
Manufacturer
TTAF Elektronik
MaterialP.B.T UL94V-0
Pin MaterialBrass/Phosphor Bronze
FinishTin-Gold Plated
Contact No1 - 40
Voltage Rating500V / AC / DC
Current Rating1A
Withstanding Voltage500V/minute
Insulation Resistance1000MΩ Mın
Temperature Range-25°C to +85°C
Contact Resistance30mΩ max.
