Pin Header & Sockets

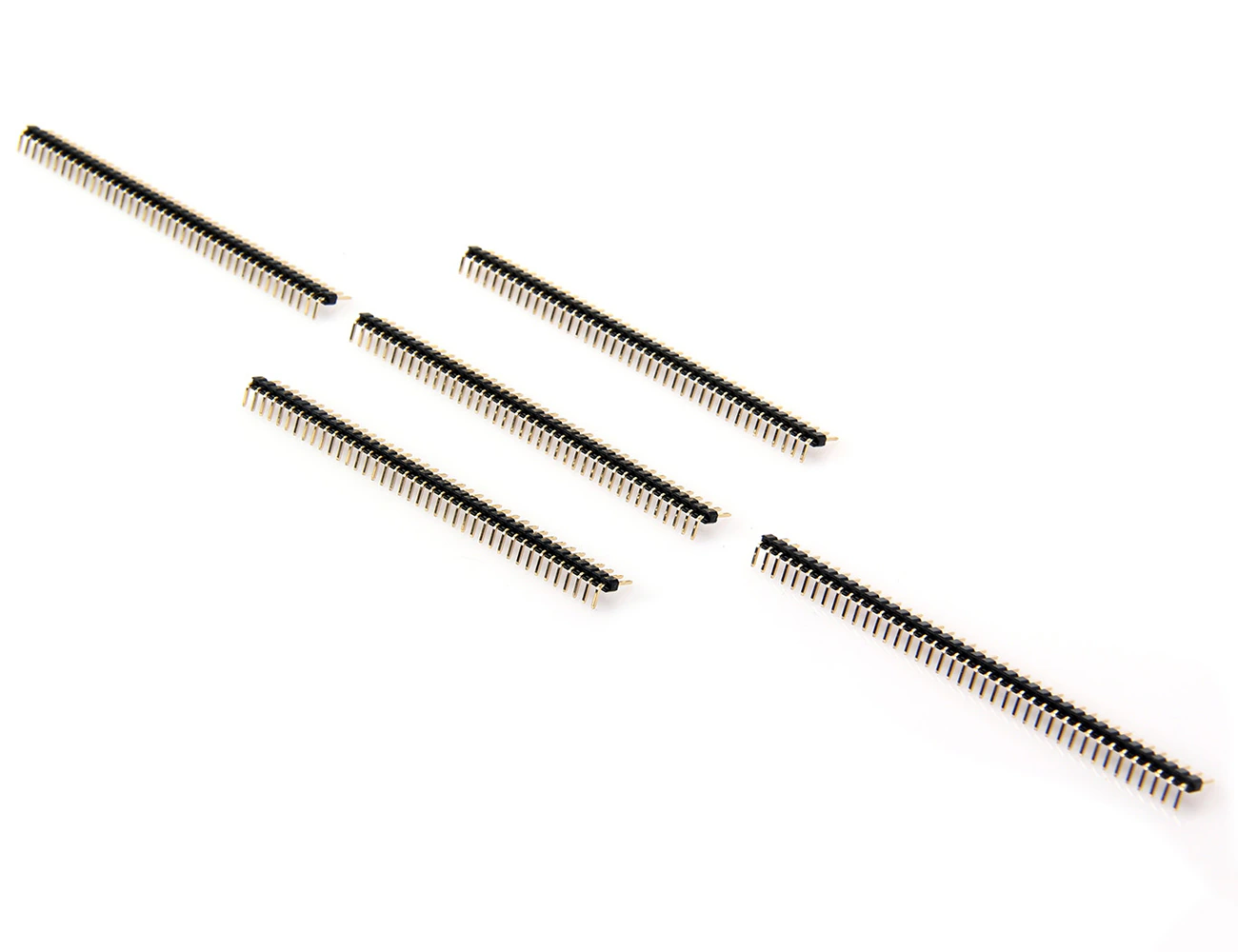

1x40 Pin 2.00mm Single Row DIP Pcb Type Right Angle Male Pin Header TTAF Elektronik

Images are for reference only See Product Specifications

Pin Header & Sockets

1x40 Pin 2.00mm Single Row DIP Pcb Type Right Angle Male Pin Header

Part number
1307-1x40RTB
Manufacturer
TTAF Elektronik
MaterialNylon 6T UL94V-0
Pin MaterialBrass
FinishGold Plated
Contact No1 - 40
Voltaj Değeri130V / AC / DC
Current Rating1A
Withstanding Voltage800V/minute
Insulation Resistance1000MΩ Mın
Temperature Range-25°C to +85°C
Contact Resistance20mΩ max.
