1x40 Pin 1.27mm Single Row SMD Pcb Type Right Angle Female Pin Header TTAF Elektronik

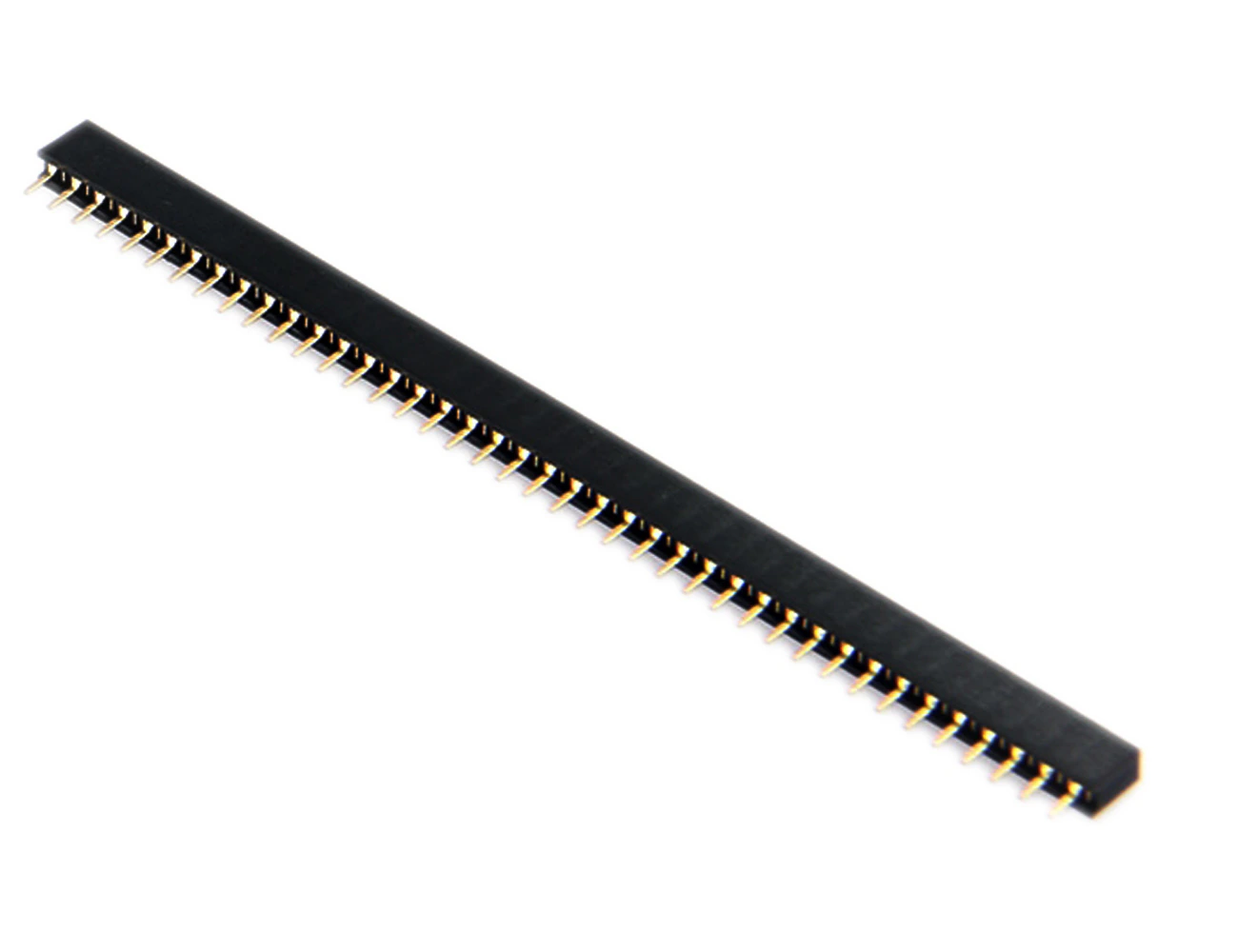

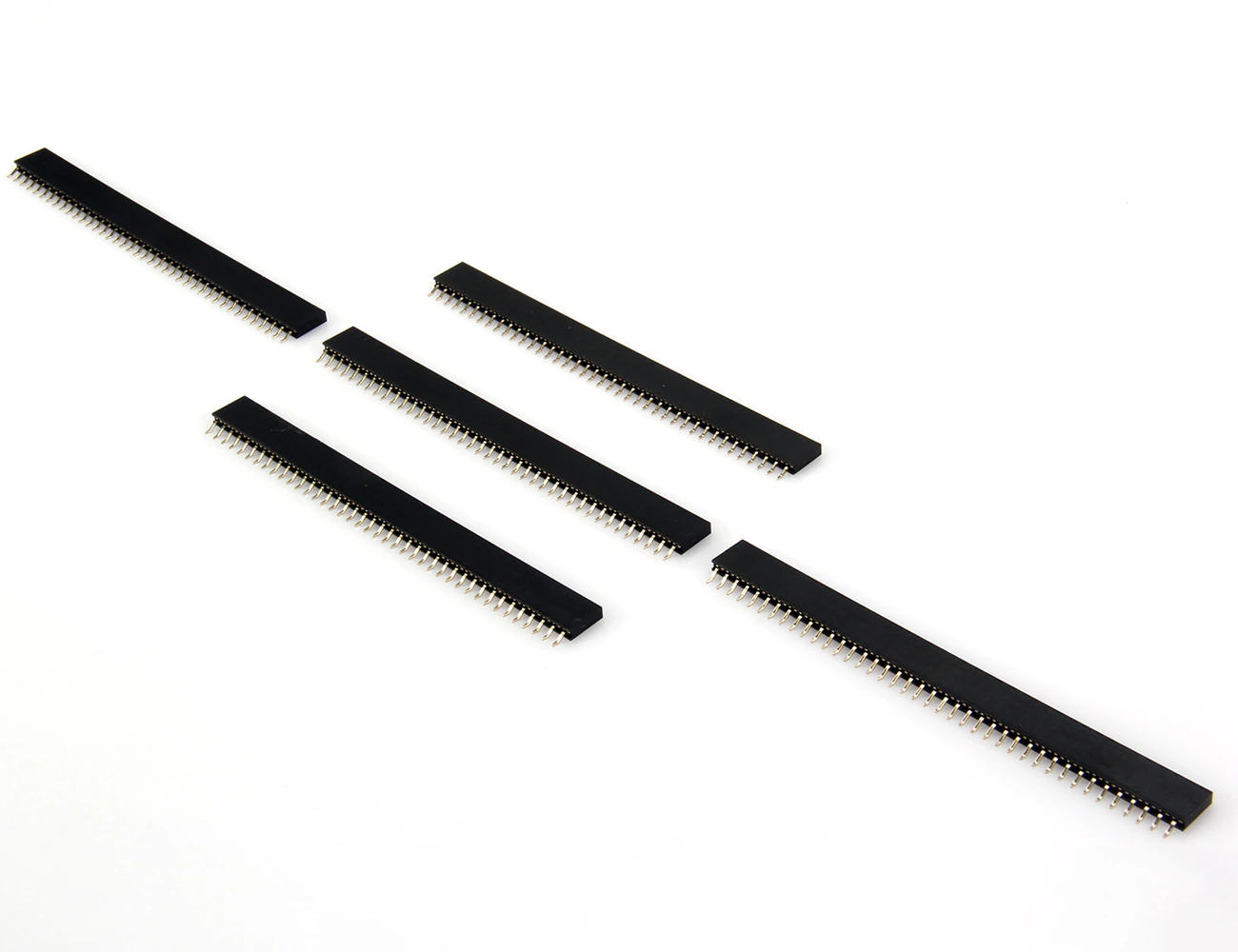

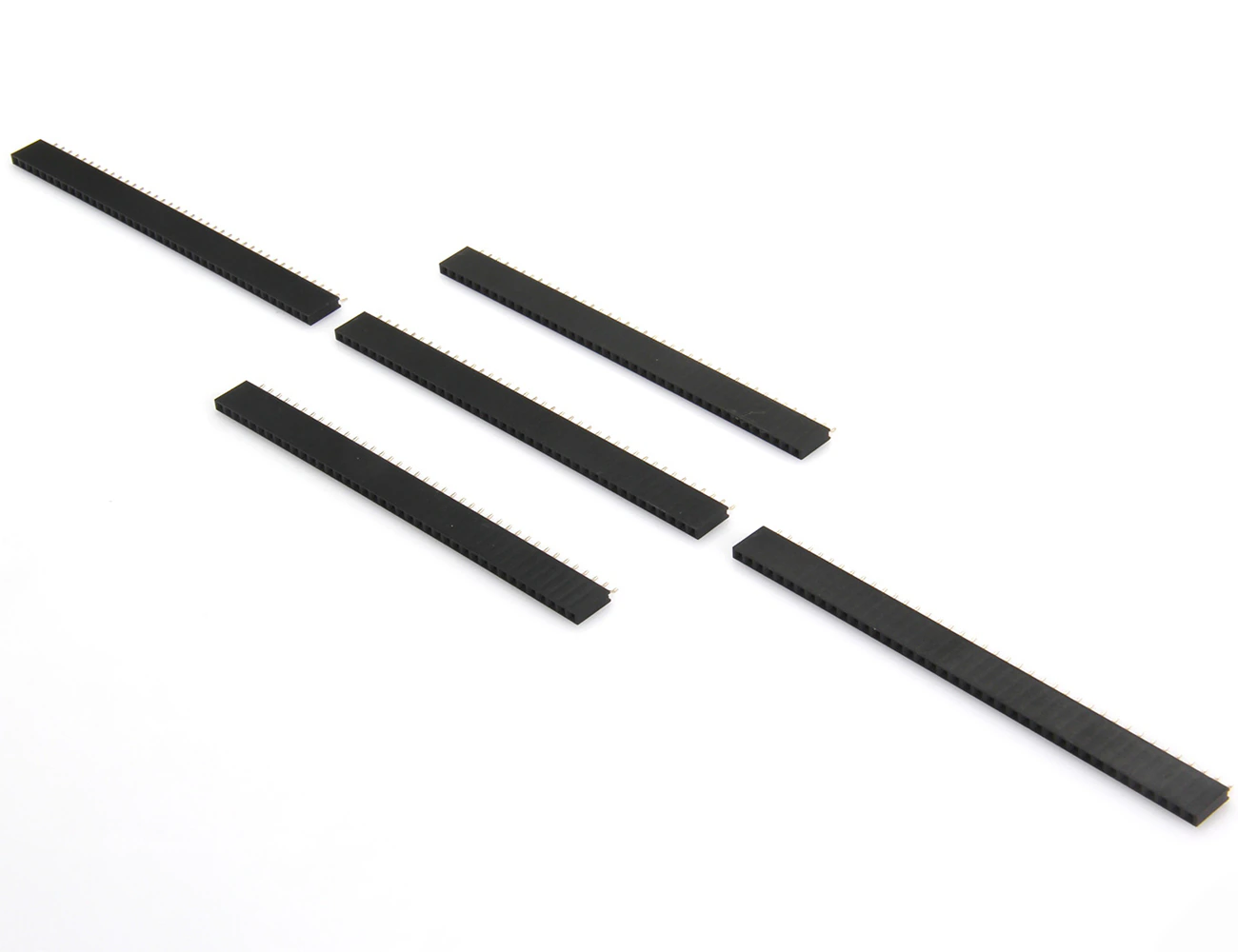

Images are for reference only See Product Specifications

Pin Header & Sockets

1x40 Pin 1.27mm Single Row SMD Pcb Type Right Angle Female Pin Header

Part number
1319-1x40RTD
Manufacturer
TTAF Elektronik
MaterialP.B.T UL94V-0
Pin MaterialBrass/Phosphor Bronze
FinishTin-Gold Plated
Contact No1 - 40
Voltage Rating500V / AC / DC
Current Rating1A
Withstanding Voltage500V/minute
Insulation Resistance1000MΩ Mın
Temperature Range-25°C to +85°C
Contact Resistance30mΩ max.
